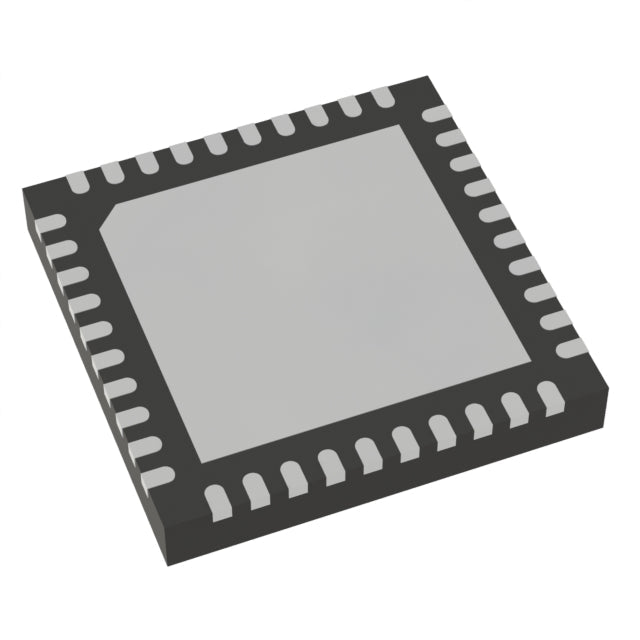

Skyworks Solutions Inc. SI5332A-D-AM2

The SI5332A-D-AM2 from Skyworks Solutions is a dual-circuit Clock Generator and Frequency Synthesizer with a bypassable PLL. It accepts Clock, Crystal, or LVCMOS inputs and provides HCSL, LVCMOS, LVDS, or LVPECL outputs at frequencies up to 333.33MHz. With 2 circuits, it offers flexible clock generation for a variety of applications. The device operates from -40°C to 105°C and is housed in a 40-VFQFN package, making it suitable for industrial, networking, and audio/video systems.

• Dual Circuits: Two independent clock generation paths provide design flexibility.
• PLL Bypass: Allows direct clock passthrough when synthesis is not required.
• Wide Output Options: HCSL, LVCMOS, LVDS, and LVPECL outputs support diverse logic families.
• Extended Temperature: -40°C to 105°C for demanding industrial applications.

Processor Clock Generation

Use the SI5332A-D-AM2 to generate multiple clocks for CPUs, GPUs, and memory controllers, ensuring synchronized operation at frequencies up to 333.33MHz.

Networking and Switching

For Ethernet switches and routers, this synthesizer provides low-jitter clocks for PHYs and MACs, improving data throughput and reducing errors.

Audio/Video Synchronization

In professional AV equipment, the device generates precise clocks for audio codecs and video processors, maintaining lip-sync and frame accuracy.

Industrial Control Systems

For PLCs and motion controllers, the SI5332A-D-AM2 provides stable clocks for FPGAs and microcontrollers, enhancing system reliability.

Data Acquisition Systems

In high-speed data acquisition, this synthesizer generates clocks for ADCs and DACs, improving sampling accuracy and reducing jitter.

5G and Wireless Infrastructure

For base stations and small cells, the device provides synchronized clocks for RF transceivers, ensuring reliable wireless communication.

Q: What type of device is the SI5332A-D-AM2?

A: It is a Clock Generator and Frequency Synthesizer from Skyworks, providing multiple output clocks from a single reference.

Q: Does it include a PLL?

A: Yes, it includes a PLL with bypass capability, allowing either synthesized or bypassed clock outputs.

Q: What input types are supported?

A: It supports Clock, Crystal, and LVCMOS inputs, offering flexible reference options.

Q: What output types are available?

A: Outputs include HCSL, LVCMOS, LVDS, and LVPECL, covering a wide range of logic families.

Q: How many circuits does it have and what is the maximum frequency?

A: It has 2 circuits and supports output frequencies up to 333.33MHz.

Q: What is the operating temperature range and package?

A: It operates from -40°C to 105°C and is available in a 40-VFQFN Exposed Pad package.
