Skyworks Solutions Inc. SI5332D-D-GM2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.73 | $11.73 |
| 15+ | $11.36 | $170.40 |
| 25+ | $11.12 | $278.00 |
| 50+ | $10.50 | $525.00 |
| 100+ | $9.26 | $926.00 |
| N+ | $1.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Skyworks Solutions Inc. |
| Product Series | MultiSynth™ |
| Packaging | Tray | |
| Type | Clock Generator |
| PLL | Yes |
| Input | LVCMOS, Crystal |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 3:8 |
| Differential - Input:Output | Yes/Yes |
| Frequency - Max | 200MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.71V ~ 3.63V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

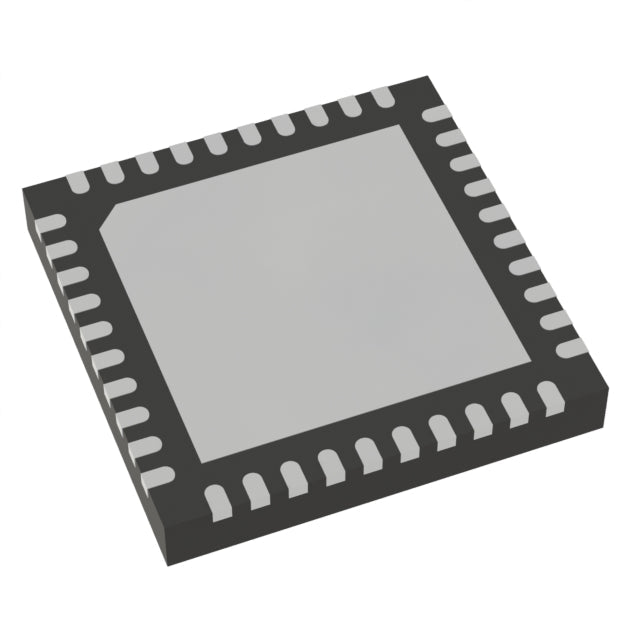

| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) |
The SI5332D-D-GM2 from Skyworks Solutions is a versatile clock generator with an integrated PLL, delivering up to 200 MHz output frequencies. It accepts LVCMOS or crystal inputs and provides HCSL, LVCMOS, LVDS, and LVPECL outputs, making it suitable for a wide range of applications. Housed in a compact 40-VFQFN package, it operates reliably from -40°C to 85°C.
- Multi-format output support (HCSL, LVCMOS, LVDS, LVPECL): Eliminates the need for level translators, saving board space.
- Integrated PLL: Reduces external component count and simplifies design.
- Wide temperature range: Suitable for industrial environments.
- Compact 40-VFQFN package: Ideal for space-constrained designs.
Enterprise Switch Timing
In data center switches, the SI5332D-D-GM2 generates multiple low-jitter clocks for SerDes, MAC, and control logic, simplifying board layout and reducing component count.
Server Motherboard Clocking
For x86 servers, this clock generator provides PCIe, USB, and SATA reference clocks, ensuring compliance with industry timing specifications.
Industrial Automation Controllers
In PLCs and motion controllers, the device generates synchronized clocks for EtherCAT and PROFINET interfaces, improving real-time communication reliability.
Broadcast Video Routers
The SI5332D-D-GM2 creates multiple video clocks (SDI, HDMI) from a single crystal, reducing jitter and ensuring frame-accurate switching.
Test and Measurement Equipment
In oscilloscopes and signal analyzers, this clock generator provides stable sampling clocks, enhancing measurement accuracy and repeatability.
5G Small Cell Base Stations
For small cell radios, the device generates clean clocks for FPGAs and converters, improving signal quality while minimizing power consumption.
- Q: What type of device is the SI5332D-D-GM2?
- A: It is a Clock Generator, providing multiple output clocks from a single reference.
- Q: Does it have a PLL?
- A: Yes, it includes a PLL for frequency synthesis and jitter reduction.
- Q: What input types are supported?
- A: It accepts LVCMOS or Crystal inputs.
- Q: What output types are available?
- A: It provides HCSL, LVCMOS, LVDS, and LVPECL outputs.
- Q: How many circuits and what is the max frequency?
- A: It has 1 circuit and supports up to 200 MHz output frequency.
- Q: What is the package and temperature range?
- A: It comes in a 40-VFQFN Exposed Pad package and operates from -40°C to 85°C.
