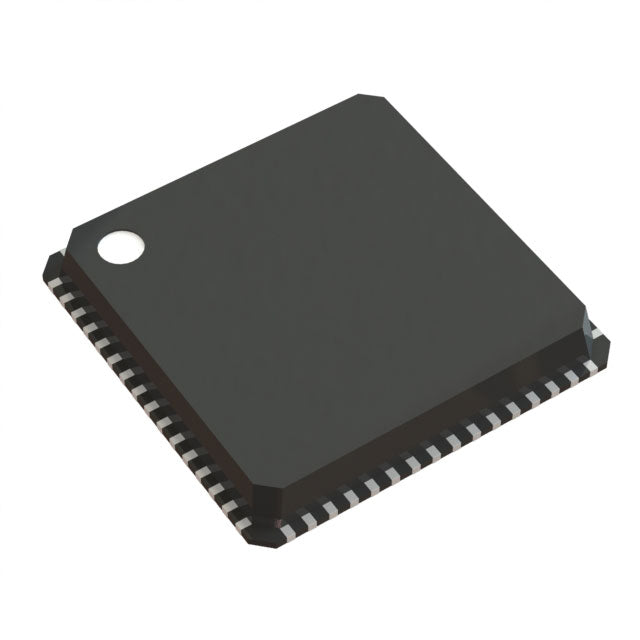

Skyworks Solutions Inc. SI5397A-A-GM
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $60.47 | $60.47 |
| 15+ | $58.56 | $878.40 |
| 25+ | $57.29 | $1,432.25 |
| 50+ | $54.10 | $2,705.00 |
| 100+ | $47.74 | $4,774.00 |
| N+ | $9.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Skyworks Solutions Inc. |
| Product Series | DSPLL® |
| Packaging | Tray | |
| Type | Clock Multiplier, Jitter Attenuator |
| PLL | Yes |
| Input | LVCMOS, Crystal |
| Output | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 4:8 |
| Differential - Input:Output | Yes/Yes |
| Frequency - Max | 720MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 1.71V ~ 1.89V, 3.14V ~ 3.47V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9x9) |
| ROHS |  |
The SI5397A-A-GM is a high-performance clock multiplier and jitter attenuator from Skyworks Solutions. Featuring an integrated PLL, it accepts LVCMOS or crystal inputs and provides outputs in CML, HCSL, LVCMOS, LVDS, and LVPECL formats. With a maximum frequency of 720MHz and a single circuit, this device is engineered for applications demanding exceptional jitter performance, such as data centers, 5G infrastructure, and broadcast systems.
- Ultra-Low Jitter: Integrated PLL attenuates input jitter, critical for high-speed serial links.
- High Frequency: Supports up to 720MHz, covering advanced networking and processor requirements.
- Multiple Output Formats: CML, HCSL, LVCMOS, LVDS, LVPECL provide design flexibility.
- Industrial Temperature: -40°C to 85°C ensures reliability in demanding environments.
High-Speed Networking
The SI5397A-A-GM multiplies low-frequency references to 720MHz clocks, ideal for 100GbE and 400GbE switch fabrics requiring ultra-low jitter.
Data Center Timing
As a jitter attenuator, it cleans noisy reference clocks from FPGA or ASIC, ensuring reliable operation of high-speed SerDes links.
5G Base Station Synchronization
Generate multiple output frequencies from a single crystal input, supporting various radio interface clocks in harsh outdoor environments.
Broadcast Video Infrastructure
Provides precise clock multiplication for SDI and IP video processing, maintaining synchronization across production equipment.
Test Equipment Reference
Use as a frequency multiplier for benchtop instruments requiring stable, low-phase-noise clocks up to 720MHz.
Medical Imaging Systems
Delivers clean clocks for high-resolution imaging processors, reducing electromagnetic interference and improving signal integrity.
- Q: What type of device is the SI5397A-A-GM?
- A: It is a Clock Multiplier and Jitter Attenuator with PLL support.
- Q: Does it include a PLL?
- A: Yes, it has an integrated PLL for frequency multiplication and jitter cleaning.
- Q: What input and output types are supported?
- A: Inputs: LVCMOS, Crystal. Outputs: CML, HCSL, LVCMOS, LVDS, LVPECL.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum output frequency is 720MHz.
- Q: What is the operating temperature and package?
- A: Temperature range is -40°C to 85°C (TA). Package is 64-VFQFN Exposed Pad.
