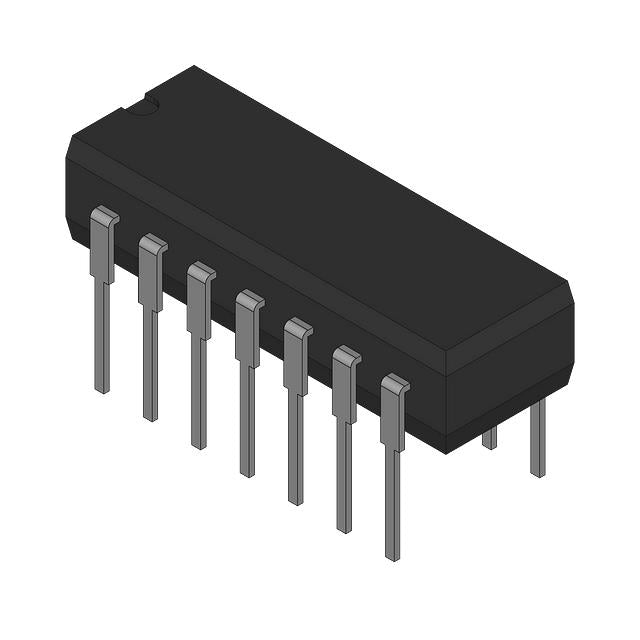

Texas Instruments SN54S32J
Regular price
$46.12
Regular price
$11.53
Sale price
$46.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $46.12 | $46.12 |
| 15+ | $10.61 | $159.15 |
| 25+ | $10.38 | $259.50 |
| 50+ | $9.80 | $490.00 |
| 100+ | $8.65 | $865.00 |
| N+ | $1.73 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 54S |
| Packaging | Bulk | |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 38 µA |
| Current - Output High, Low | 1mA, 20mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP |
| Supplier Device Package | 14-CDIP (0.300", 7.62mm) |
SN54S32J.pdf
×
