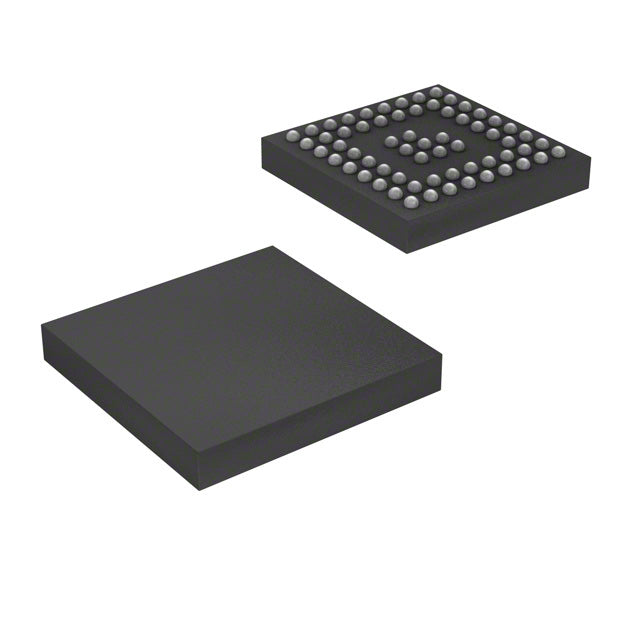

Texas Instruments SN65DSI83ZXHR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.11 | $3.11 |
| 15+ | $3.01 | $45.15 |
| 25+ | $2.94 | $73.50 |
| 50+ | $2.78 | $139.00 |
| 100+ | $2.45 | $245.00 |
| N+ | $0.49 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | FlatLink™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Applications | Notebook Computer |
| Interface | I2C, LVDS, Serial |
| Voltage - Supply | 1.65V ~ 1.95V |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFBGA |
| Supplier Device Package | 64-NFBGA (5x5) |
| ROHS |  |
The Texas Instruments SN65DSI83ZXHR is a specialized interface controller designed for notebook computer applications. It facilitates the conversion of digital video signals to LVDS for display panels, supporting I2C, LVDS, and Serial interfaces. Operating within a 1.65V to 1.95V supply range, this surface-mount IC is housed in a compact 64-VFBGA package, making it suitable for space-constrained designs.
- Efficient Display Bridging: Converts DSI to LVDS, enabling direct connection to notebook display panels with minimal components.
- Flexible Configuration: I2C interface allows for on-the-fly adjustments to display settings, simplifying system integration.
- Low-Voltage Operation: Supports 1.65V to 1.95V supplies, ideal for power-sensitive portable electronics.
- Compact Packaging: The 64-NFBGA (5x5) package saves board space, critical for slim notebook designs.
Notebook Display Connectivity
In notebook computers, the SN65DSI83ZXHR bridges application processors to LVDS-based display panels, enabling high-resolution video output with minimal signal degradation.
Embedded Display Interfaces
For embedded systems requiring reliable display output, this IC translates serialized video data into LVDS signals, supporting crisp visuals in compact form factors.
I2C-Controlled Video Links
Engineers can leverage the I2C interface for dynamic configuration of the video link, allowing adjustments to display parameters without hardware changes.
Low-Voltage Digital Systems
With a 1.65V to 1.95V supply, this IC integrates seamlessly into low-power digital architectures, reducing overall system power consumption in portable devices.
- Q: What is the primary application of the SN65DSI83ZXHR?
- A: This device is designed for notebook computer applications, converting digital video signals for display panels.
- Q: Which interface protocols does the SN65DSI83ZXHR support?
- A: It supports I2C, LVDS, and Serial interfaces for configuration and data transmission.
- Q: What is the supply voltage range for this interface IC?
- A: The operating supply voltage range is 1.65V to 1.95V.
- Q: What package options are available for the SN65DSI83ZXHR?
- A: It is offered in a 64-VFBGA package, with a supplier device package of 64-NFBGA (5x5).
- Q: What is the mounting type for this component?
- A: The SN65DSI83ZXHR is designed for surface mount technology.
