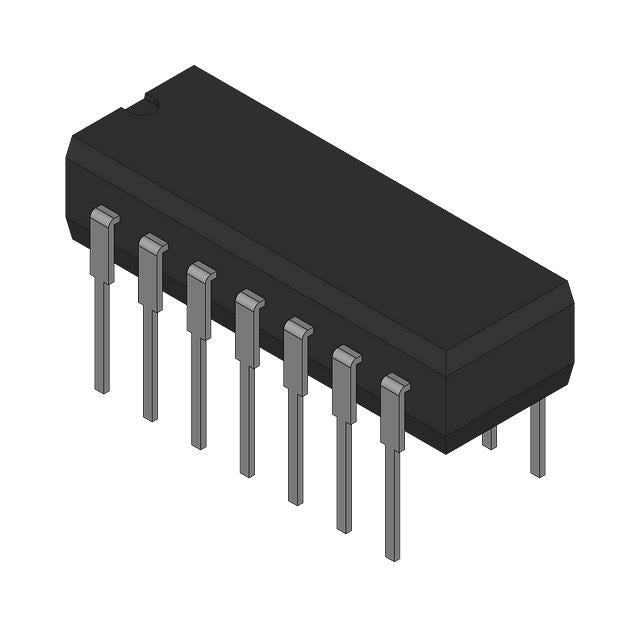

Texas Instruments SN74136N
Regular price
$3.40
Regular price
$0.85
Sale price
$3.40
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.40 | $3.40 |
| 15+ | $0.78 | $11.70 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.72 | $36.00 |
| 100+ | $0.64 | $64.00 |
| N+ | $0.13 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Bulk | |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Open Collector |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 50 mA |
| Current - Output High, Low | 250µA, 16mA |
| Input Logic Level - Low | 16mA |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 55ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-PDIP |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
SN74136N.pdf
×
