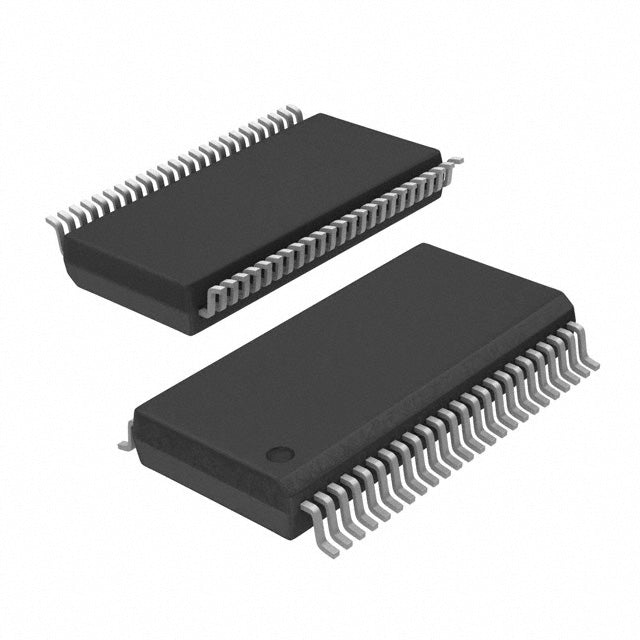

Texas Instruments SN74ABT16244ADLR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.47 | $1.47 |
| 15+ | $1.43 | $21.45 |
| 25+ | $1.40 | $35.00 |
| 50+ | $1.32 | $66.00 |
| 100+ | $1.16 | $116.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ABT |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 48-SSOP |
| ROHS |  |
The SN74ABT16244ADLR from Texas Instruments is a 16-bit, 4-channel non-inverting buffer designed for high-performance 5V systems. Operating from 4.5V to 5.5V, it offers 3-State outputs with 32mA source and 64mA sink capability. Its 48-BSSOP package and BiCMOS technology make it ideal for memory buffering, backplane interfacing, and high-drive bus applications.
- High Output Drive (32mA/64mA): Drives heavy capacitive loads and low-impedance buses with ease.
- 4 Channels (16-bit): Provides wide bus buffering in a single package, reducing component count.
- 3-State Outputs: Facilitates bus sharing in complex systems.
- 74ABT BiCMOS Technology: Combines high speed with low power consumption.
High-Drive Bus Systems
Use the SN74ABT16244ADLR to drive heavily loaded backplane buses in telecom or networking equipment. Its 64mA sink capability handles low-impedance lines.
Memory Address/Data Buffering
Buffer high-speed memory buses in servers, providing strong drive to multiple DRAM modules while maintaining signal integrity.
Backplane Interfacing
Interface between logic boards and backplanes in industrial computers, where high current and 3-State outputs are essential.
Signal Distribution
Distribute clock or control signals to multiple destinations with minimal degradation, thanks to the high output current.
Automotive ECU Communication
In automotive electronic control units, buffer CAN or LIN bus signals to interface with multiple sensors and actuators.
FPGA/ASIC Interface
Connect FPGAs or ASICs to external memory or peripherals, providing the necessary drive strength and voltage compatibility.
- Q: What is the logic family of the SN74ABT16244ADLR?
- A: It belongs to the 74ABT logic family, known for high-speed BiCMOS performance.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 4 channels, designed for high-drive bus applications.
- Q: What is the output type?
- A: It features 3-State outputs for bus-oriented systems.
- Q: What is the operating voltage range?
- A: It operates from 4.5V to 5.5V, suitable for 5V systems.
- Q: What is the output current capability?
- A: It can sink 64mA and source 32mA, providing strong drive for heavy loads.
- Q: What package is available?
- A: It comes in a 48-BSSOP package (7.50mm width).
