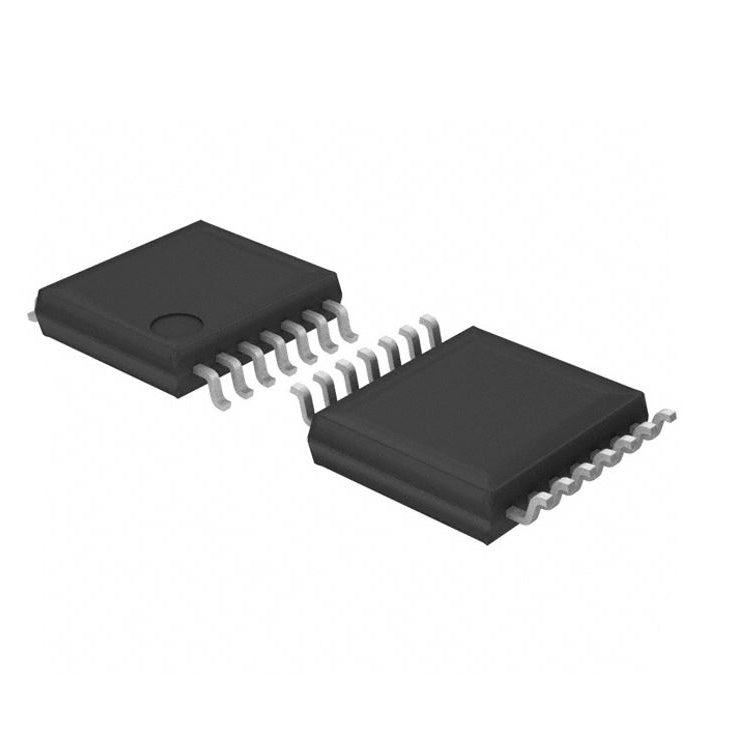

Texas Instruments SN74AHC05DBR
Regular price
$0.33
Regular price
$0.35
Sale price
$0.33
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.33 | $0.33 |
| 15+ | $0.32 | $4.80 |
| 25+ | $0.32 | $8.00 |
| 50+ | $0.30 | $15.00 |
| 100+ | $0.26 | $26.00 |
| N+ | $0.05 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74AHC |
| Packaging | Marketplace | Cut Tape (CT) |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Open Drain |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | -, 8mA |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SSOP |
| Supplier Device Package | 14-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
SN74AHC05DBR.pdf
×
