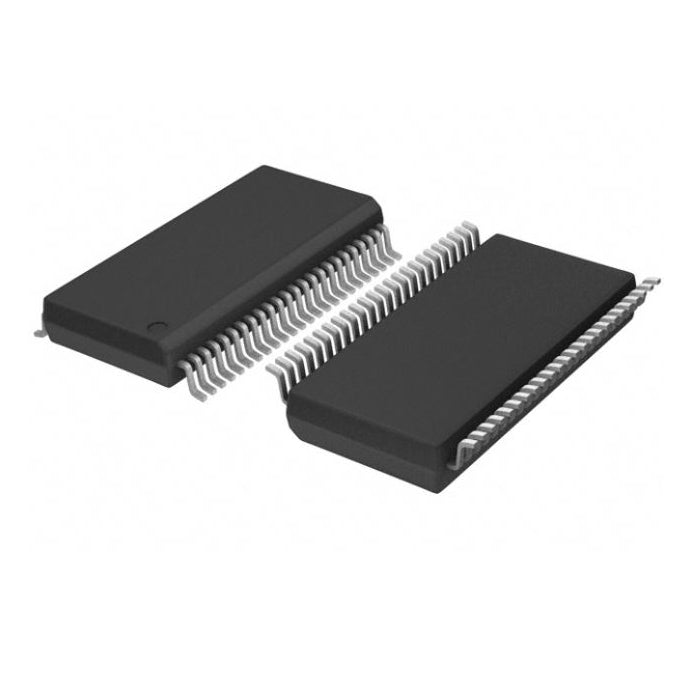

Texas Instruments SN74ALVC16244ADGGR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.30 | $2.30 |
| 15+ | $2.23 | $33.45 |
| 25+ | $2.18 | $54.50 |
| 50+ | $2.06 | $103.00 |
| 100+ | $1.82 | $182.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ALVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| ROHS |  |
The SN74ALVC16244ADGGR is a 4-channel non-inverting buffer from Texas Instruments, part of the 74ALVC logic family. It operates from 1.65V to 3.6V, making it versatile for both 1.8V and 3.3V applications. Each channel can source and sink 24mA, offering strong drive capability. The device features 3-State outputs for bus-oriented designs. It is packaged in a 48-TFSOP (0.240", 6.10mm Width) and operates over -40°C to 85°C. Ideal for level shifting, server motherboards, and portable electronics.
