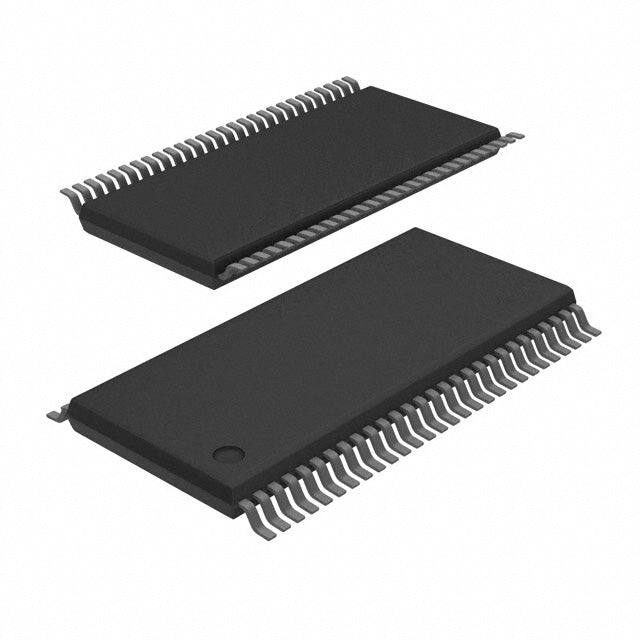

Texas Instruments SN74ALVCH16646DGGR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.33 | $2.33 |
| 15+ | $2.25 | $33.75 |
| 25+ | $2.21 | $55.25 |
| 50+ | $2.08 | $104.00 |
| 100+ | $1.84 | $184.00 |
| N+ | $0.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ALVCH |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP |
| ROHS |  |
The SN74ALVCH16646DGGR from Texas Instruments is a 2-channel, non-inverting transceiver designed for low-voltage applications. Operating from 1.65V to 3.6V, it features 3-State outputs and 24mA drive capability. This device is ideal for level shifting between 1.8V and 3.3V systems, memory interfacing, and networking equipment. Housed in a 56-TFSOP package, it operates over -40°C to 85°C.
- Wide Low-Voltage Range (1.65V-3.6V): Supports both 1.8V and 3.3V logic, reducing the need for multiple parts.
- 24mA Drive: Provides sufficient current for standard bus loads and long traces.
- 3-State Outputs: Allows multiple devices to share a bus without conflict.
- High-Speed 74ALVCH Family: Ensures low propagation delay for high-frequency signals.
3.3V/1.8V Level Shifting
Use the SN74ALVCH16646DGGR to interface between 3.3V and 1.8V logic domains in mixed-voltage systems, ensuring proper signal levels without external level shifters.
DDR Memory Modules
In DDR memory systems, this transceiver buffers address and control signals between the memory controller and DRAM, providing the necessary drive and signal integrity.
Networking Equipment
For routers and switches, the device can be used for data bus buffering between ASICs and PHYs, operating at low voltages to reduce power consumption.
Portable Electronics
In smartphones and tablets, this IC enables bidirectional communication between low-voltage processors and peripherals, extending battery life.
FPGA Interface
Connect FPGAs operating at 1.8V to 3.3V peripherals using this transceiver, providing a reliable bridge for configuration and data lines.
Industrial Sensors
In industrial automation, the device buffers sensor data from 3.3V microcontrollers to 1.8V logic, maintaining signal integrity over longer traces.
- Q: What logic family does the SN74ALVCH16646DGGR belong to?
- A: It is part of the 74ALVCH family, offering low-voltage, high-speed operation.
- Q: What is the function of this IC?
- A: It is a 2-channel, non-inverting transceiver with 3-State outputs.
- Q: What is the voltage range?
- A: It operates from 1.65V to 3.6V, supporting both 1.8V and 3.3V systems.
- Q: What is the output current?
- A: It can source and sink 24mA each, suitable for standard bus loads.
- Q: What package is available?
- A: It comes in a 56-TFSOP (0.240", 6.10mm Width) package.
- Q: What is the temperature range?
- A: It is rated for -40°C to 85°C.
