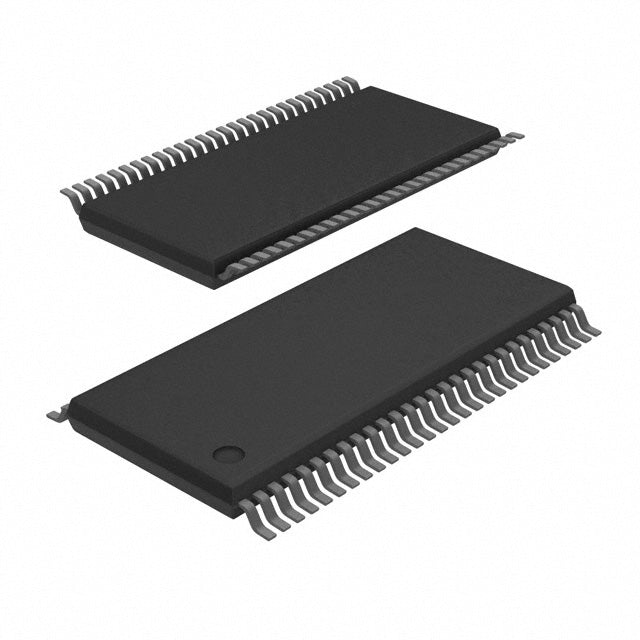

Texas Instruments SN74ALVCH16825DL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.72 | $3.72 |
| 15+ | $0.86 | $12.90 |
| 25+ | $0.84 | $21.00 |
| 50+ | $0.79 | $39.50 |
| 100+ | $0.70 | $70.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ALVCH |
| Packaging | Marketplace | Tube |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 9 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 56-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 56-SSOP |
| ROHS |  |
The SN74ALVCH16825DL is a high-performance, non-inverting buffer from Texas Instruments, part of the 74ALVCH logic family. It features 2 channels with 3-State outputs, providing excellent drive capability with 24mA source and sink current. Operating over a wide voltage range of 1.65V to 3.6V, this buffer is ideal for low-voltage, high-speed applications such as bus interfacing, memory driving, and signal buffering in computing, networking, and portable electronics. Its 56-BSSOP package offers a compact solution for space-constrained designs.
- Wide 1.65V to 3.6V Supply Range: Compatible with multiple low-voltage logic levels, simplifying mixed-voltage system design.
- High 24mA Output Drive: Ensures reliable signal transmission over longer traces and into multiple loads.
- 3-State Outputs: Allows for bus sharing and multiplexing without bus contention.
- 74ALVCH High-Speed Family: Optimized for low propagation delay, suitable for high-frequency applications.
Low-Voltage Bus Interfacing
With a 1.65V to 3.6V supply range, the SN74ALVCH16825DL is perfect for interfacing between 1.8V, 2.5V, and 3.3V logic domains, ensuring reliable communication in mixed-voltage systems.
High-Speed Signal Buffering
The 74ALVCH family is optimized for high-speed operation, making this buffer ideal for buffering clock signals or data lines in high-frequency digital circuits without introducing significant propagation delay.
Memory Address/Data Driving
Its 24mA output drive capability allows it to drive the address and data buses of SRAM or SDRAM modules, ensuring signal integrity across multiple memory chips.
Backplane and Cable Driving
The 3-State outputs and high drive current enable the SN74ALVCH16825DL to drive long traces on backplanes or cables, reducing signal degradation in server and networking equipment.
FPGA/ASIC Interface Buffering
Use this buffer to isolate and drive outputs from FPGAs or ASICs, protecting them from external loads and providing a clean, buffered signal to peripheral devices.
Portable Electronics
Its low-voltage operation and low power consumption make it suitable for battery-powered devices like smartphones and tablets, where power efficiency is critical.
- Q: What is the logic family of the SN74ALVCH16825DL?
- A: It belongs to the 74ALVCH logic family, designed for low-voltage, high-speed operation.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 2 channels, ideal for signal buffering and bus driving.
- Q: What is the output type?
- A: It features 3-State outputs, allowing connection to shared buses with high-impedance control.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V, making it compatible with low-voltage systems.
- Q: What is the package type?
- A: It comes in a 56-BSSOP (0.295", 7.50mm Width) package.
- Q: What is the output current capability?
- A: It can source and sink 24mA, suitable for driving moderate loads.
