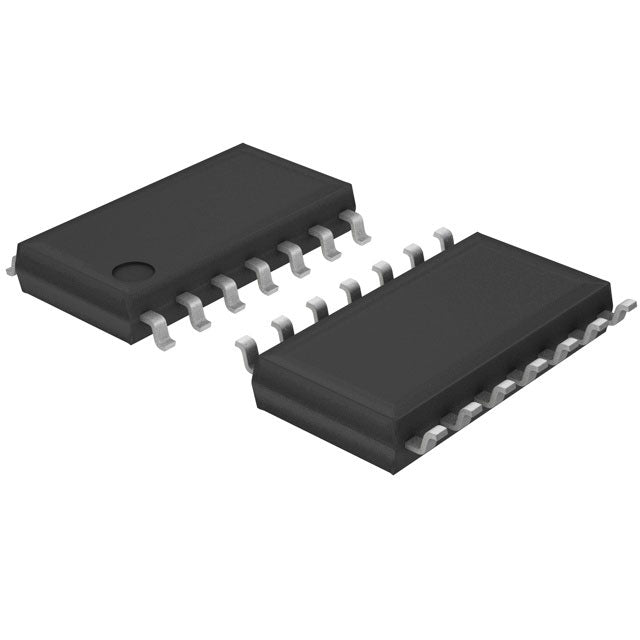

Texas Instruments SN74HC14NS
Regular price
$2.05
Regular price
$0.51
Sale price
$2.05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.05 | $2.05 |
| 15+ | $0.47 | $7.05 |
| 25+ | $0.46 | $11.50 |
| 50+ | $0.43 | $21.50 |
| 100+ | $0.38 | $38.00 |
| N+ | $0.08 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74HC |
| Packaging | Tube | |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.1V ~ 0.26V |
| Input Logic Level - High | 1.998V ~ 5.8V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SO |
| Supplier Device Package | 14-SOIC (0.209", 5.30mm Width) |
| ROHS |  |
SN74HC14NS.pdf
×
