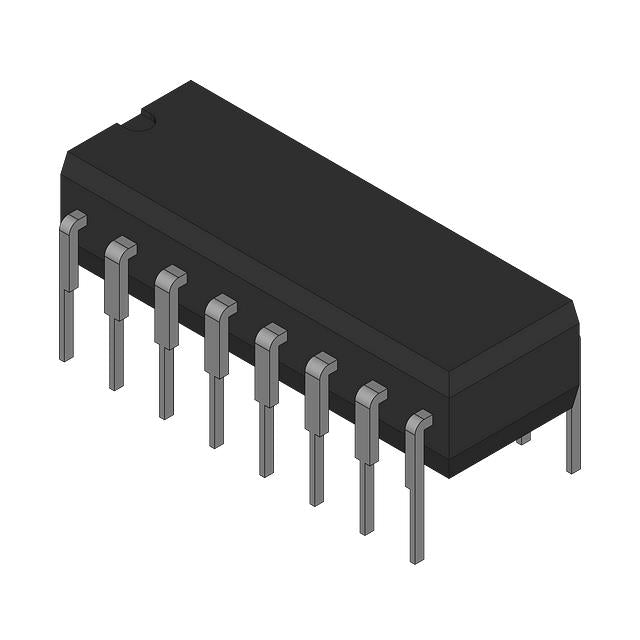

Texas Instruments SN74HC175ANS
Regular price
$0.32
Regular price
$0.34
Sale price
$0.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.32 | $0.32 |
| 15+ | $0.31 | $4.65 |
| 25+ | $0.31 | $7.75 |
| 50+ | $0.29 | $14.50 |
| 100+ | $0.26 | $26.00 |
| N+ | $0.05 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74HC |
| Packaging | Bulk | |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 1 |
| Number of Bits per Element | 4 |
| Clock Frequency | 85 MHz |
| Max Propagation Delay @ V, Max CL | 24ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SO |
| Supplier Device Package | 16-SOIC (0.209", 5.30mm Width) |
SN74HC175ANS.pdf
×
