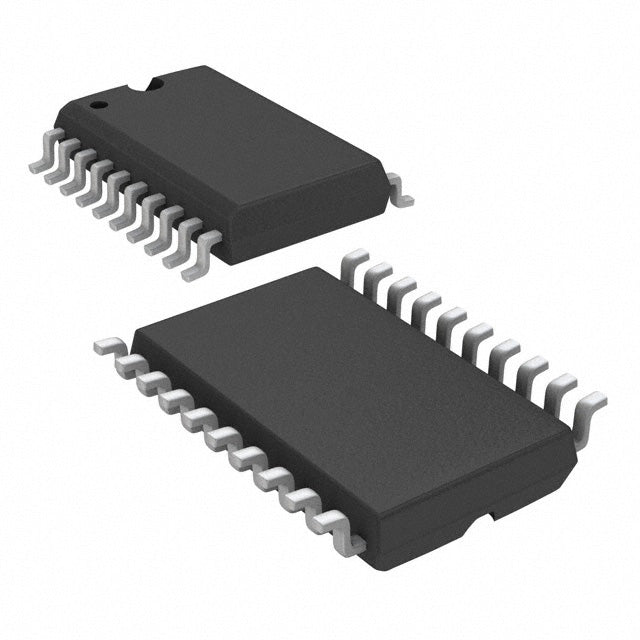

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
Regular price
$5.80
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
Regular price
$6.10
Sale price
Unit price
per
| quantity | unit price | total price |
| 1 | $5.80 | $5.80 |
| 15+ | $5.61 USD | $84.18 USD |
| 25+ | $5.49 USD | $137.25 USD |
| 50+ | $5.19 USD | $259.25 USD |
| 100+ | $4.58 USD | $457.50 USD |
| N+ | $3.05 USD | Price Inquiry |
Shipping calculated at checkout.
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | Bulk |
| Packaging | Marketplace | Tube |
| Type | Magnitude Comparator |
| Number of Bits | 8 |
| Output | Active Low |
| Output Function | A=B, A>B |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Max Propagation Delay @ V, Max CL | 47ns @ 6V, 50pF |
| Current - Quiescent (Iq) | - |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
Datasheets:
SN74HC684DW
.pdf
×
