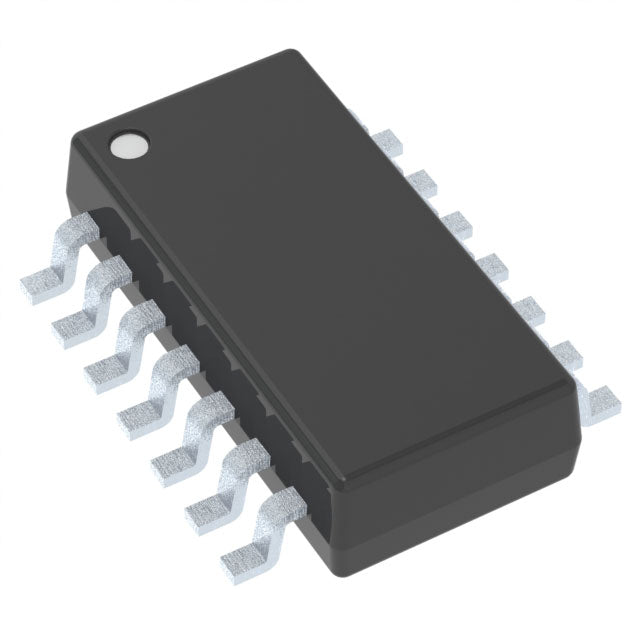

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
1
/
of
1
Texas Instruments
SN74HCS02DYYR
Integrated Circuits & Chips
Texas Instruments
IC GI 4-CH, 2-INPUT, 2-V TO 6-V 5.2 MA
SN74HCS02DYYR
Regular price
$0.12
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
Regular price
$0.13
Sale price
Unit price
/
per
| quantity | unit price | total price |
| 1 | $0.12 | $0.12 |
| 15+ | $0.12 USD | $1.79 USD |
| 25+ | $0.12 USD | $2.93 USD |
| 50+ | $0.11 USD | $5.53 USD |
| 100+ | $0.10 USD | $9.75 USD |
| N+ | $0.07 USD | Price Inquiry |
Shipping calculated at checkout.
Couldn't load pickup availability
Payment methods
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74HCS |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Input Logic Level - Low | 1V ~ 3V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOT-23-THIN |
| Supplier Device Package | SOT-23-14 Thin, SOT-23 Variant |
