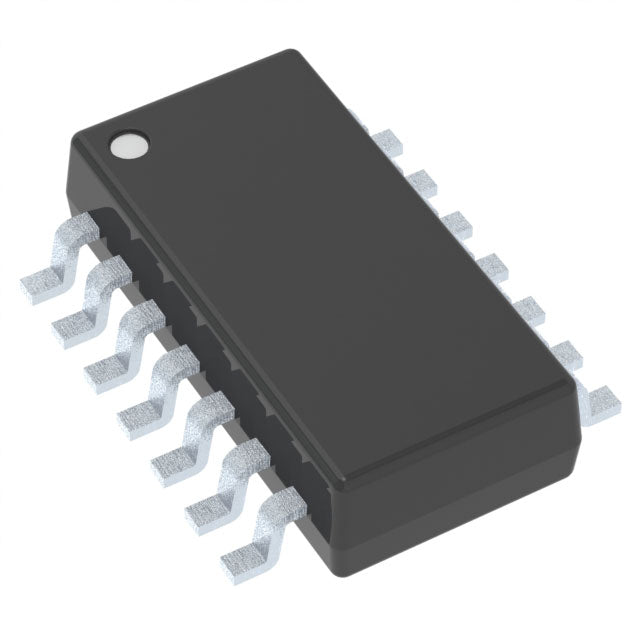

Texas Instruments SN74HCS08DYYR
Regular price
$0.25
Regular price
$0.26
Sale price
$0.25
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.25 | $0.25 |
| 15+ | $0.24 | $3.60 |
| 25+ | $0.23 | $5.75 |
| 50+ | $0.22 | $11.00 |
| 100+ | $0.20 | $20.00 |
| N+ | $0.04 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74HCS |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA |
| Input Logic Level - Low | 1V ~ 3V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOT-23-THIN |
| Supplier Device Package | SOT-23-14 Thin, SOT-23 Variant |
| ROHS |  |
SN74HCS08DYYR.pdf
×
