Texas Instruments SN74LS109ANSR

Skip to product information
1 of 1

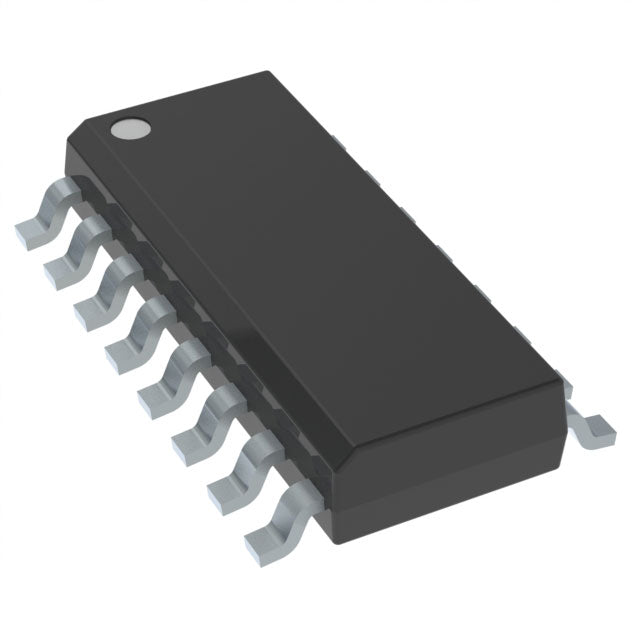

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $1.56
Regular price $1.64 Sale price $1.56
Sale Sold out
Quantity Unit Price Total Price
1 $1.56 $1.56
15+ $1.51 $22.65
25+ $1.48 $37.00
50+ $1.39 $69.50
100+ $1.23 $123.00
N+ $0.25 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Texas Instruments
Product Series 74LS
Packaging Marketplace | Cut Tape (CT)
Function Set(Preset) and Reset
Type JK Type
Output Type Complementary
Number of Elements 2
Number of Bits per Element 1
Clock Frequency 33 MHz
Max Propagation Delay @ V, Max CL 25ns @ 5V, 15pF
Trigger Type Positive Edge
Current - Output High, Low 400µA, 8mA
Voltage - Supply 4.75V ~ 5.25V
Current - Quiescent (Iq) 8 mA
Input Capacitance -
Operating Temperature 0°C ~ 70°C (TA)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case 16-SO
Supplier Device Package 16-SOIC (0.209", 5.30mm Width)

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
