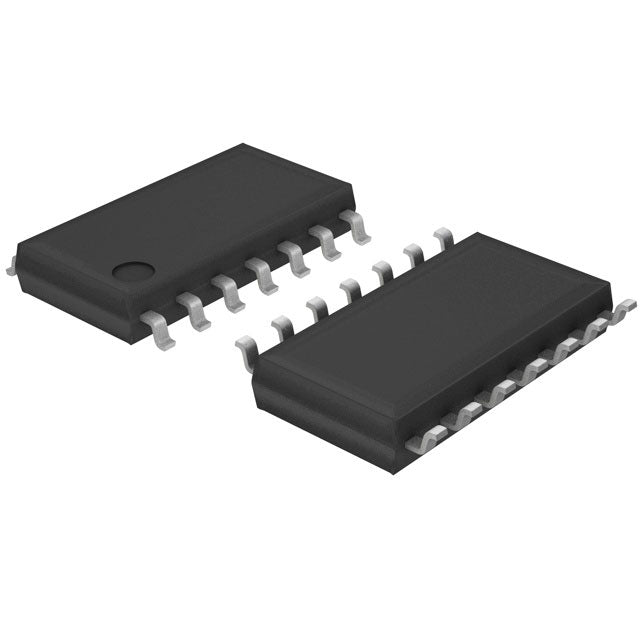

Texas Instruments SN74LS86ANSR
Regular price
$0.61
Regular price
$0.64
Sale price
$0.61
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.61 | $0.61 |
| 15+ | $0.59 | $8.85 |
| 25+ | $0.58 | $14.50 |
| 50+ | $0.54 | $27.00 |
| 100+ | $0.48 | $48.00 |
| N+ | $0.10 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LS |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 400µA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 30ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SO |
| Supplier Device Package | 14-SOIC (0.209", 5.30mm Width) |
| ROHS |  |
SN74LS86ANSR.pdf
×
