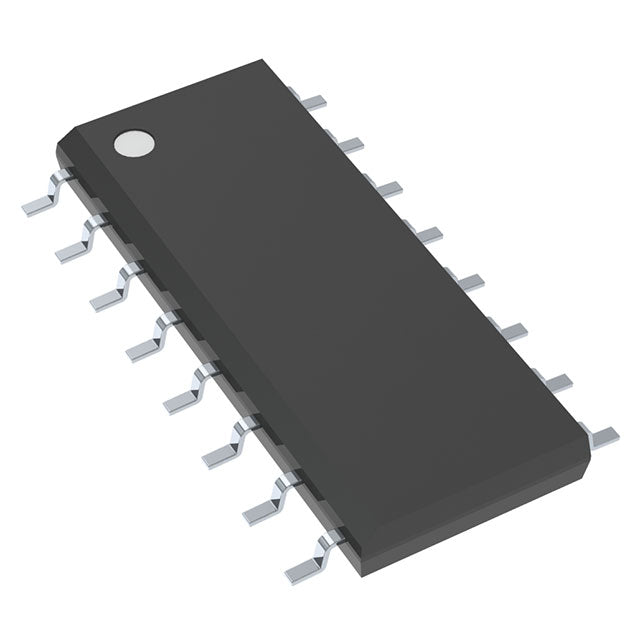

Texas Instruments SN74LV367ADR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.22 | $1.22 |
| 15+ | $1.18 | $17.70 |
| 25+ | $1.15 | $28.75 |
| 50+ | $1.09 | $54.50 |
| 100+ | $0.96 | $96.00 |
| N+ | $0.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LV |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 2, 4 (Hex) |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 16mA, 16mA |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
The SN74LV367ADR is a dual non-inverting buffer from the 74LV family, operating from 2V to 5.5V. It provides 3-State outputs with 16mA drive, ideal for bus-oriented applications. The 16-SOIC package is suitable for standard PCB layouts. Common uses include signal buffering, level shifting, and memory driving in industrial and automotive systems.
- Wide Supply Range (2V-5.5V): Simplifies mixed-voltage design without level translators.
- 3-State Outputs: Enables efficient bus multiplexing and reduces power consumption.
- 16mA Drive: Ensures robust signal delivery to multiple loads.
- SOIC Package: Industry-standard footprint for easy manufacturing.
Automotive ECU Signal Buffering
Operates at 2V-5.5V and -40°C to 85°C, buffering sensor signals in engine control units with reliable 3-State isolation.
Industrial PLC I/O Expansion
Drive multiple input modules with 16mA output, ensuring signal integrity over short PCB traces in noisy factory floors.
Consumer Electronics Level Translation
Interface 3.3V application processors with 5V legacy peripherals, using the wide supply range for seamless communication.
Data Acquisition Systems
Buffer analog-to-digital converter outputs to a shared data bus, using 3-State control to avoid bus conflicts.
Telecom Line Card Drivers
Drive status LEDs and control lines with high current, while 3-State outputs allow hot-swapping of line cards.
FPGA Configuration Logic
Buffer configuration signals to multiple FPGAs, maintaining signal quality with 16mA drive and 3-State isolation.
- Q: What is the logic family of the SN74LV367ADR?
- A: It is from the 74LV family, supporting 2V to 5.5V supply.
- Q: What function does it perform?
- A: It is a non-inverting buffer with 2 channels and 3-State outputs.
- Q: What is the output type?
- A: 3-State outputs allow high-impedance states for bus sharing.
- Q: What voltage range is supported?
- A: 2V to 5.5V, covering 3.3V and 5V logic levels.
- Q: What package is this variant?
- A: It uses a 16-SOIC (3.90mm width) package.
- Q: What is the output current?
- A: 16mA sink and source per channel.
