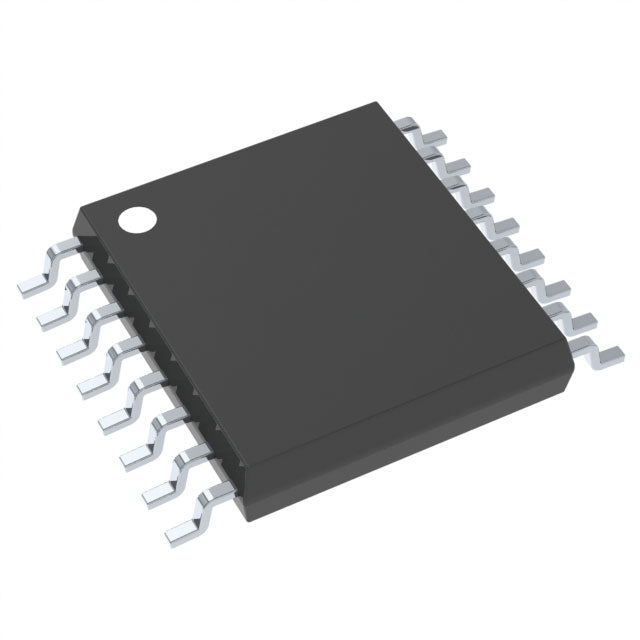

Texas Instruments SN74LV367APWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.22 | $1.22 |
| 15+ | $1.18 | $17.70 |
| 25+ | $1.15 | $28.75 |
| 50+ | $1.09 | $54.50 |
| 100+ | $0.96 | $96.00 |
| N+ | $0.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LV |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 2, 4 (Hex) |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 16mA, 16mA |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The SN74LV367APWR is a dual non-inverting buffer from the 74LV family, designed for 2V to 5.5V operation. It features 3-State outputs with 16mA drive capability, making it ideal for bus-oriented systems. The 16-TSSOP package suits space-constrained PCBs. Typical applications include memory drivers, clock buffering, and level translation in industrial and consumer electronics.
- Wide 2V to 5.5V Supply Range: Compatible with both 3.3V and 5V logic, reducing power supply complexity.
- 3-State Outputs: Enable bus sharing and multiplexing without external isolation components.
- 16mA Output Drive: Drives capacitive loads and multiple inputs reliably.
- Compact TSSOP Package: Saves board space in high-density designs.
Bus Interfacing for Mixed-Voltage Systems
With 3-State outputs and a 2V-5.5V range, the SN74LV367APWR isolates and drives data buses in mixed 3.3V/5V environments, preventing bus contention.
Signal Buffering for High-Fanout Clocks
Non-inverting buffers with 16mA drive strengthen weak clock signals, ensuring clean edges across multiple loads in digital systems.
Level Shifting for Peripheral Interfaces
Operate at 2V to 5.5V to translate logic levels between low-voltage MCUs and 5V peripherals, simplifying design without extra components.
Memory Address Line Driving
Drive multiple memory chips with high current and 3-State control, enabling efficient address bus expansion in embedded systems.
Industrial Sensor Signal Conditioning
In -40°C to 85°C environments, buffer sensor outputs to PLCs with robust noise immunity and controlled impedance.
Test Equipment Channel Isolation
Use 3-State outputs to disconnect unused channels in automated test setups, reducing loading and crosstalk.
- Q: What is the logic family of the SN74LV367APWR?
- A: It belongs to the 74LV logic family, operating from 2V to 5.5V.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 2 channels and 3-State outputs.
- Q: What is the output type?
- A: 3-State outputs allow connection to shared buses with high-impedance control.
- Q: What is the voltage range?
- A: It supports 2V to 5.5V, compatible with 3.3V and 5V systems.
- Q: What package is available?
- A: It comes in a 16-TSSOP (4.40mm width) package.
- Q: What is the output current capability?
- A: It can source/sink 16mA per channel.
