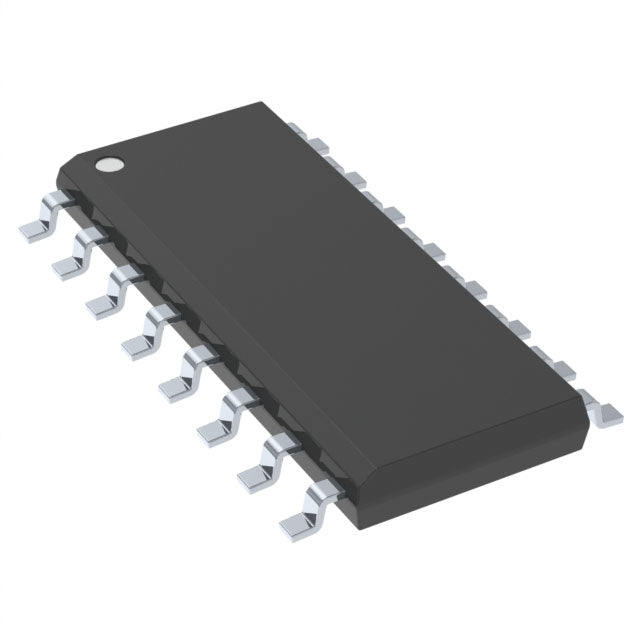

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
SN74LV4053AQDYYRQ1
SN74LV4053AQDYYRQ1
Regular price
Dhs. 0.79
Regular price
Dhs. 0.82
Sale price
Dhs. 0.79
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 0.79 AED | Dhs. 0.79 AED |
| 15+ | Dhs. 0.75 AED | Dhs. 11.25 AED |
| 25+ | Dhs. 0.74 AED | Dhs. 18.50 AED |
| 50+ | Dhs. 0.70 AED | Dhs. 35.00 AED |
| 100+ | Dhs. 0.62 AED | Dhs. 62.00 AED |
| N+ | Dhs. 0.12 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LV |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SPDT - Open/Closed |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.3Ohm |
| Voltage - Supply, Single (V+) | 1V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 14ns, 14ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 8.2pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-16 Thin, SOT-23 Variant |
| Supplier Device Package | 16-SOT-23-THIN |
| ROHS |  |
Datasheets:
SN74LV4053AQDYYRQ1
.pdf
×
