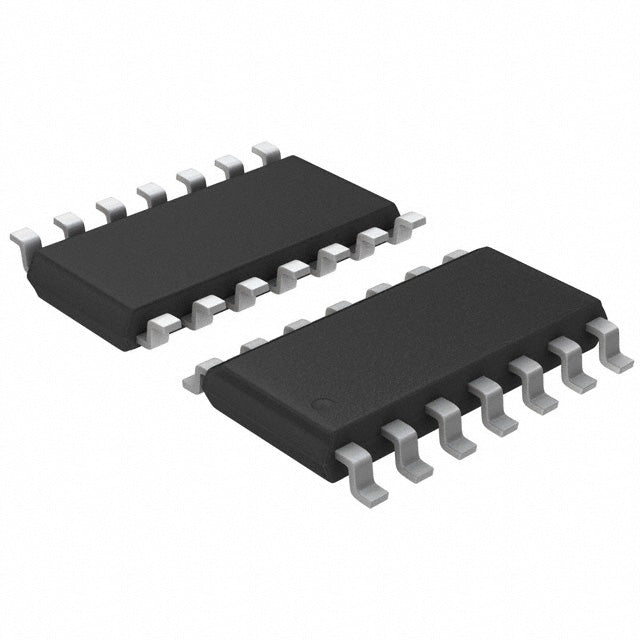

Texas Instruments SN74LVC07ADRG3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.37 | $0.37 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Open Drain |
| Current - Output High, Low | -, 24mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| ROHS |  |
The SN74LVC07ADRG3 is a hex non-inverting buffer from Texas Instruments' 74LVC family. It features six open-drain outputs, allowing flexible level shifting and wired-OR logic implementations. Operating from 1.65V to 5.5V, it bridges 3.3V and 5V systems while providing 24mA sink capability. The 14-SOIC package is compact and industry-standard. Ideal for I2C buffering, level translation, and driving loads with external pull-ups in automotive and industrial applications.
- Wide 1.65V to 5.5V Supply Range: Seamlessly interfaces between 3.3V and 5V logic domains.
- Open-Drain Outputs: Enables level shifting and wired-OR connections for flexible system design.
- High 24mA Sink Current: Drives LEDs, relays, or multiple loads with ease.
- Extended Temperature Range (-40°C to 125°C): Reliable in harsh automotive and industrial environments.
Level Shifting from 3.3V to 5V
With open-drain outputs and a 5V pull-up resistor, this buffer can translate 3.3V logic signals to 5V logic levels, enabling communication between low-voltage microcontrollers and legacy 5V peripherals.
Wired-OR Bus Architecture
Connect multiple open-drain outputs to a single pull-up line to implement a wired-OR configuration. This is useful for interrupt lines or shared status signals where any device can pull the line low.
Driving High-Voltage Loads
Since the output transistor can handle up to 5.5V, you can drive loads like relays or optocouplers that require higher voltage than the logic supply, using an appropriate external pull-up.
I2C Bus Buffering
The open-drain outputs are perfect for I2C signal buffering, allowing you to extend bus length or increase fan-out while maintaining the required open-drain protocol.
Automotive Sensor Interfaces
Rated for -40°C to 125°C, this buffer can interface automotive sensors with open-drain outputs to an ECU, providing robust signal conditioning in extreme temperatures.
Industrial Control Logic
Use it in industrial PLCs to buffer open-drain sensor outputs, ensuring reliable signal transmission over longer cable runs with external pull-ups.
- Q: What is the logic family of the SN74LVC07ADRG3?
- A: It is part of the 74LVC family, offering low-voltage operation with high noise immunity.
- Q: What is the function of this IC?
- A: It is a hex (6-channel) non-inverting buffer with open-drain outputs, ideal for level shifting and wired-OR logic.
- Q: How many channels does it have?
- A: It provides 6 independent buffer channels, each capable of sinking current to an external pull-up resistor.
- Q: What is the output type?
- A: The outputs are open-drain, requiring an external pull-up resistor to set the high-level voltage.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 5.5V, making it compatible with both 3.3V and 5V systems.
- Q: What package is available?
- A: It comes in a 14-pin SOIC package (0.154", 3.90mm width), suitable for standard surface-mount assembly.
