Texas Instruments SN74LVC07ARGYR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.33 | $0.33 |
| 15+ | $0.32 | $4.80 |
| 25+ | $0.32 | $8.00 |
| 50+ | $0.30 | $15.00 |
| 100+ | $0.26 | $26.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Open Drain |
| Current - Output High, Low | -, 24mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

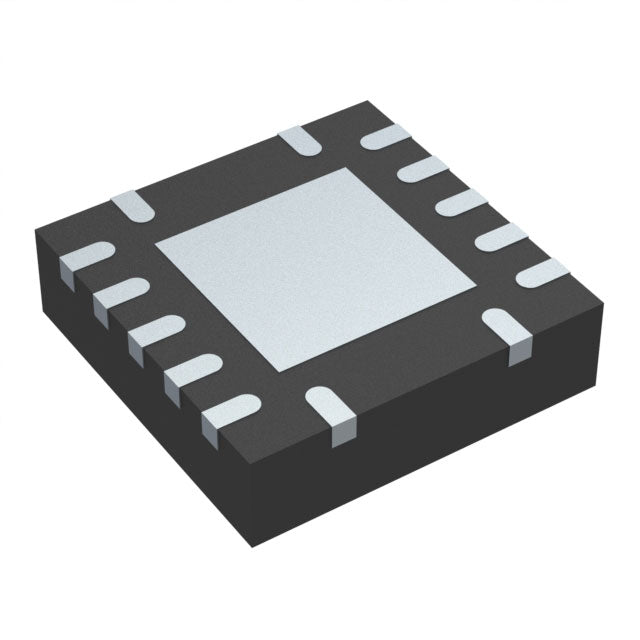

| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-VQFN (3.5x3.5) |
| ROHS |  |
The SN74LVC07ARGYR is a low-voltage CMOS hex non-inverting buffer from Texas Instruments. It features open-drain outputs that can sink up to 24mA, allowing for level shifting and wired-OR logic. Operating from 1.65V to 5.5V, it is perfect for I2C bus buffering, driving LEDs, and interfacing between different voltage domains in modern digital systems.
- Open-Drain Outputs for Level Shifting: Enables easy interfacing between different voltage domains (e.g., 1.8V to 3.3V) by using external pull-up resistors.
- Wide 1.65V to 5.5V Supply Range: Compatible with both 3.3V and 5V systems, simplifying design.
- High 24mA Sink Current: Can directly drive LEDs and other moderate-power loads, reducing component count.
- Low Power Consumption: The 74LVC family is known for its low static and dynamic power, making it ideal for battery-powered applications.
Level Shifting for Open-Drain Interfaces
The open-drain outputs of the SN74LVC07ARGYR allow for simple level shifting. By connecting pull-up resistors to a different supply voltage, you can interface 1.8V logic to 3.3V or 5V systems without additional level-shifter ICs.
I2C and SMBus Bus Buffering
This buffer is ideal for I2C and SMBus applications where open-drain outputs are required. It can buffer address and data lines, increasing fan-out and improving signal integrity on longer bus traces.
Driving LEDs and Relays
With a 24mA sink capability, the SN74LVC07ARGYR can directly drive LEDs and small relays. The open-drain configuration allows the load to be connected to a higher voltage than the IC's supply, offering design flexibility.
Interfacing with High-Voltage Loads
Because the open-drain output can withstand voltages above VCC (up to 5.5V), this buffer can safely interface low-voltage logic to higher-voltage loads, such as relays or industrial sensors.
Wired-OR Logic Implementation
Multiple open-drain outputs can be connected together to form a wired-OR configuration, which is useful in interrupt lines or bus arbitration circuits. This reduces the number of ICs needed.
Battery-Powered Portable Devices
The low-voltage operation (down to 1.65V) and low power consumption of the 74LVC family make this buffer ideal for battery-powered devices like wearables and IoT sensors.
- Q: What is the logic family of the SN74LVC07ARGYR?
- A: It is part of the 74LVC (Low-Voltage CMOS) logic family.
- Q: What is the function of this IC?
- A: It is a hex (6-channel) non-inverting buffer.
- Q: What is the output type?
- A: It features open-drain outputs, requiring external pull-up resistors to define the high-level voltage.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 5.5V, supporting a wide range of low-voltage applications.
- Q: What is the package type?
- A: It comes in a 14-pin VFQFN (Very Thin Quad Flat No-Lead) package with an exposed pad.
- Q: What is the sink current capability?
- A: It can sink up to 24mA per channel, making it suitable for driving LEDs and other loads.
