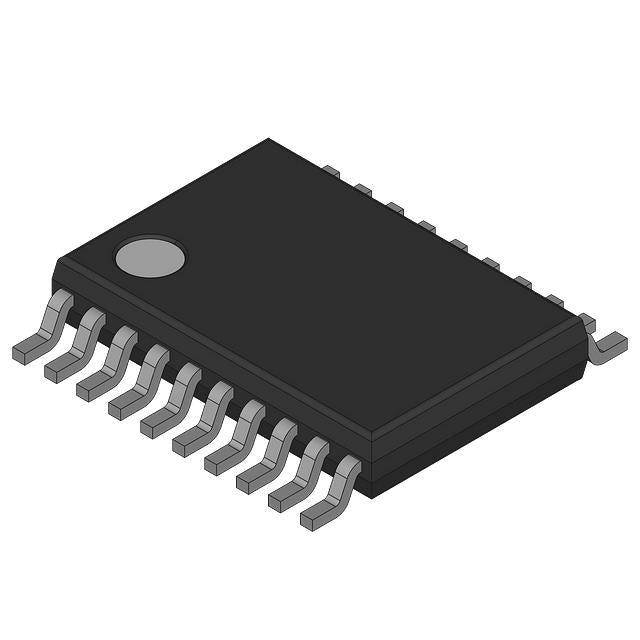

Texas Instruments SN74LVC2244APWT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.04 | $1.04 |
| 15+ | $1.00 | $15.00 |
| 25+ | $0.98 | $24.50 |
| 50+ | $0.93 | $46.50 |
| 100+ | $0.82 | $82.00 |
| N+ | $0.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| ROHS |  |
The SN74LVC2244APWT from Texas Instruments is a dual-channel non-inverting buffer operating from 1.65V to 3.6V. It provides 12mA output drive with 3-State outputs, making it ideal for 3.3V and low-voltage bus systems. Its 74LVC family supports 5V tolerant inputs, enabling mixed-voltage interfacing. Suitable for portable devices, server motherboards, and automotive electronics.
- Wide 1.65V to 3.6V Supply: Compatible with 1.8V, 2.5V, and 3.3V logic levels.
- 5V Tolerant Inputs: Allows direct interfacing with legacy 5V systems.
- Low Power Consumption: Ideal for battery-powered applications.
- 3-State Outputs: Facilitates bus sharing in multi-device systems.
3.3V Bus Buffering
Buffer address/data lines in 3.3V microcontrollers, providing 12mA drive to multiple memory or peripheral loads.
Mixed-Voltage Interfacing
Interface 3.3V logic to 5V systems, as the 74LVC family accepts 5V inputs, simplifying level translation.
FPGA Configuration
Drive configuration pins on FPGAs from a 1.8V or 2.5V CPLD, ensuring reliable programming.
Portable Devices
Buffer signals in battery-powered gadgets, where low-voltage operation reduces power consumption.
Server Motherboards
Drive control signals in 3.3V server logic, providing high-speed buffering for DIMMs and chipsets.
Automotive Infotainment
Buffer CAN or SPI lines in 3.3V automotive systems, ensuring signal integrity in noisy environments.
- Q: What is the logic family of the SN74LVC2244APWT?
- A: It belongs to the 74LVC logic family, which supports low-voltage operation with 5V tolerant inputs.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer, used to amplify signals for driving loads.
- Q: How many channels does it have?
- A: It has 2 channels, each with multiple buffer stages.
- Q: What is the output type?
- A: It features 3-State outputs for bus-oriented applications.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V, compatible with 3.3V and lower logic.
- Q: What package is available?
- A: It comes in a 20-TSSOP (0.173", 4.40mm Width) package.
