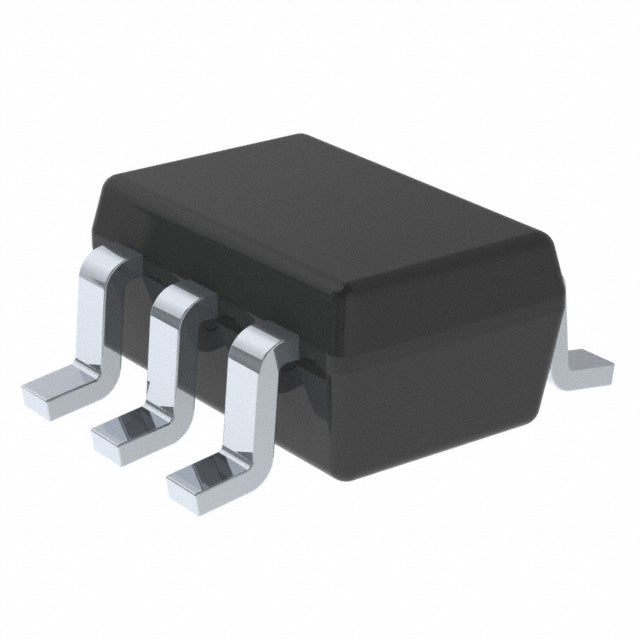

Texas Instruments SN74LVC2G17DCK3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.41 | $0.41 |
| 15+ | $0.40 | $6.00 |
| 25+ | $0.39 | $9.75 |
| 50+ | $0.37 | $18.50 |
| 100+ | $0.32 | $32.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | Schmitt Trigger |
| Output Type | Push-Pull |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| ROHS |  |
The SN74LVC2G17DCK3 from Texas Instruments is a dual non-inverting buffer featuring Schmitt-trigger inputs for enhanced noise immunity. Operating from 1.65V to 5.5V, this 74LVC device supports mixed-voltage systems and delivers up to 32mA of output current per channel. Its push-pull outputs can drive LEDs, relays, or other logic gates directly. Housed in a compact SOT-363 package, it is ideal for space-constrained applications such as portable electronics, signal conditioning, and bus interfacing.
- Wide 1.65V to 5.5V Supply Range: Compatible with 1.8V, 2.5V, 3.3V, and 5V logic, simplifying mixed-voltage design.
- Schmitt-Trigger Inputs: Provides hysteresis for clean switching on slow or noisy signals, improving system reliability.
- High 32mA Output Current: Can directly drive LEDs and other moderate loads, reducing external components.
- Compact SOT-363 Package: Saves PCB space in dense, portable designs.
Signal Buffering for Mixed-Voltage Systems
With a wide 1.65V to 5.5V supply range, the SN74LVC2G17DCK3 can buffer signals between 1.8V microcontrollers and 3.3V or 5V peripherals, ensuring reliable logic levels without additional level shifters.
Noise-Immune Input Conditioning
The Schmitt-trigger inputs provide hysteresis, which cleans up slow or noisy input signals from switches, encoders, or long PCB traces, preventing false triggering in digital systems.
High-Current LED Driving
Each push-pull output can source or sink up to 32mA, making it suitable for directly driving indicator LEDs with current-limiting resistors in control panels and status displays.
Clock and Data Distribution
In digital systems, this buffer can fan out a single clock or data signal to two loads, maintaining signal integrity and reducing capacitive loading on the source.
Battery-Powered Portable Devices
The low-voltage operation down to 1.65V makes it ideal for battery-powered IoT sensors and wearables, where power efficiency and low-voltage logic are critical.
Automotive Body Electronics
Although not automotive-qualified, its wide voltage range and robust push-pull outputs make it suitable for non-critical automotive infotainment and body control modules operating at 3.3V or 5V.
- Q: What is the logic family of the SN74LVC2G17DCK3?
- A: It belongs to the 74LVC logic family, known for low-voltage operation and high-speed performance.
- Q: What is the function of this IC?
- A: It is a dual (2-channel) non-inverting buffer with Schmitt-trigger inputs, providing signal conditioning and noise immunity.
- Q: What is the output type?
- A: The outputs are push-pull, capable of sourcing and sinking 32mA, ideal for driving moderate loads.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 5.5V, making it compatible with 1.8V, 2.5V, 3.3V, and 5V systems.
- Q: What package is available?
- A: It comes in a 6-TSSOP, SC-88, or SOT-363 package, suitable for compact PCB designs.
- Q: What is the temperature range?
- A: It is specified for -40°C to 85°C, suitable for most commercial and industrial applications.
