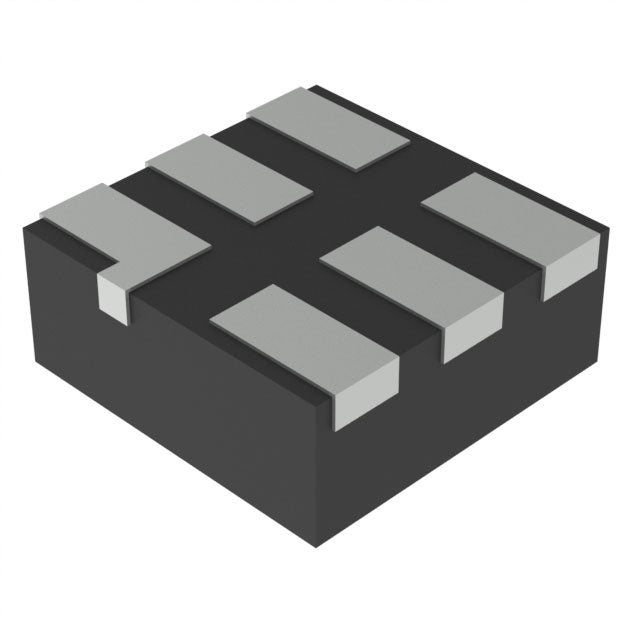

Texas Instruments SN74LVC2G17DSF2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.70 | $0.70 |
| 15+ | $0.68 | $10.20 |
| 25+ | $0.67 | $16.75 |
| 50+ | $0.63 | $31.50 |
| 100+ | $0.56 | $56.00 |
| N+ | $0.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | Schmitt Trigger |
| Output Type | Push-Pull |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-SON (1x1) |
| ROHS |  |
The SN74LVC2G17DSF2 is a dual-channel, non-inverting buffer from Texas Instruments, part of the 74LVC logic family. It operates from 1.65V to 5.5V, making it highly versatile for mixed-voltage applications. The push-pull outputs can source or sink 32mA, providing strong drive capability. The device is available in an ultra-small 6-XFDFN package, ideal for space-constrained designs. It operates from -40°C to 125°C. Typical applications include wearable electronics, IoT devices, and high-speed signal buffering.
- Ultra-Small 6-XFDFN Package: Saves valuable PCB space in compact designs like wearables and IoT modules.
- High Output Current (32mA): Can drive multiple loads or LEDs directly, reducing component count.
- Wide Supply Range (1.65V to 5.5V): Supports 1.8V, 2.5V, 3.3V, and 5V systems, simplifying mixed-voltage design.
- Low Propagation Delay: Ensures high-speed operation, suitable for communication and data-intensive applications.
Compact Wearable Electronics
In smartwatches and fitness trackers, the 6-XFDFN package saves critical board space. The 1.65V operation allows direct interfacing with low-voltage sensors and MCUs, while the 32mA drive can power small LEDs or buzzers.
High-Speed Signal Buffering
Buffer high-frequency signals in communication modules. The 74LVC family is known for low propagation delay, and the 32mA output current ensures fast edge rates, preserving signal integrity at high data rates.
Level Shifting in Mixed-Voltage Designs
Interface between 1.8V and 3.3V or 5V logic. The wide supply range allows the buffer to operate at the lower voltage while accepting higher-voltage inputs, simplifying level translation.
Driving Multiple Loads
Use the 32mA output capability to drive multiple gate inputs or small relays. This reduces the need for additional driver ICs, saving cost and board area.
Battery-Powered IoT Devices
In IoT sensors, the low-voltage operation (1.65V) minimizes power consumption, extending battery life. The push-pull outputs ensure reliable communication with the radio transceiver.
Portable Medical Devices
Buffer signals in glucose monitors or pulse oximeters. The small package and low-voltage operation are ideal for compact, battery-powered medical devices where reliability is critical.
- Q: What is the logic family of the SN74LVC2G17DSF2?
- A: It belongs to the 74LVC logic family, operating from 1.65V to 5.5V.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 2 channels and push-pull outputs.
- Q: What is the output type?
- A: The outputs are push-pull, providing strong drive without external pull-ups.
- Q: What is the voltage range?
- A: The supply voltage range is 1.65V to 5.5V, supporting multiple logic levels.
- Q: What is the package type?
- A: It comes in a 6-XFDFN package, which is ultra-small for space-constrained designs.
- Q: What is the output current capability?
- A: It can source or sink 32mA, making it suitable for driving heavier loads.
