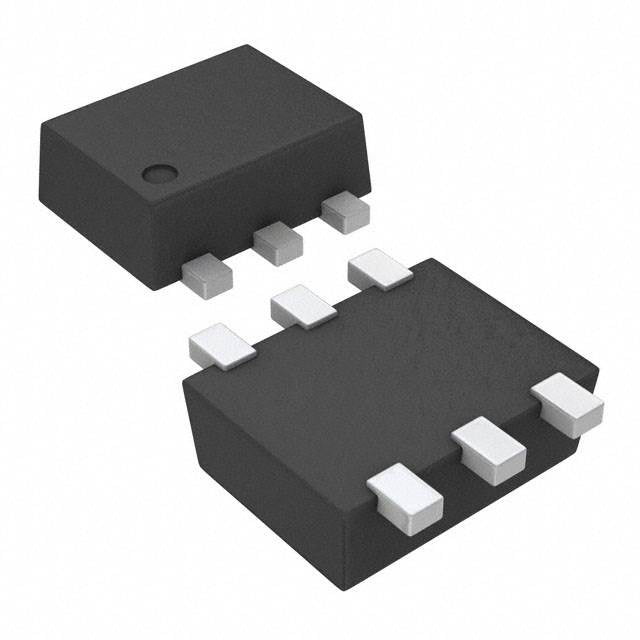

Texas Instruments SN74LVC2G34DRLR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.44 | $0.44 |
| 15+ | $0.42 | $6.30 |
| 25+ | $0.41 | $10.25 |
| 50+ | $0.39 | $19.50 |
| 100+ | $0.35 | $35.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Push-Pull |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-5X3 |
The SN74LVC2G34DRLR is a dual non-inverting buffer from Texas Instruments, part of the 74LVC logic family. It operates from 1.65V to 5.5V and features push-pull outputs capable of sourcing and sinking 32mA. This makes it ideal for signal buffering, level shifting, and driving capacitive loads. The ultra-small SOT-563 package is perfect for space-constrained designs. Its wide temperature range ensures reliable operation in various environments.
- Ultra-Wide Supply Range (1.65V to 5.5V): Supports the latest low-voltage logic and legacy 5V systems.
- High Drive Current (32mA): Can drive heavy loads and long traces, improving signal integrity.
- Push-Pull Outputs: No external pull-up resistors needed, simplifying board design.
- Ultra-Small Package (SOT-563): Saves PCB space for compact portable devices.
Low-Voltage Logic Buffering
With a 1.65V minimum supply, the SN74LVC2G34DRLR is perfect for buffering signals in modern low-voltage FPGAs and microcontrollers.
Signal Reconditioning
In compact designs, it can reshape degraded signals from long traces or connectors, ensuring clean logic levels at the receiver.
Level Shifting (1.8V to 3.3V)
By powering the buffer at the higher voltage, it can translate 1.8V logic signals to 3.3V, enabling mixed-voltage communication.
Driving High-Capacitance Loads
The 32mA drive capability allows it to drive high-capacitance loads like multiple IC inputs or short cables without signal degradation.
Portable Electronics
Its small SOT-563 package and low-voltage operation make it ideal for smartphones, wearables, and other battery-powered devices.
Clock Distribution
It can buffer and distribute clock signals to multiple destinations, maintaining signal integrity in high-speed digital systems.
- Q: What logic family does the SN74LVC2G34DRLR use?
- A: It is from the 74LVC family, operating from 1.65V to 5.5V.
- Q: What is the function of this IC?
- A: It is a dual non-inverting buffer with 2 channels.
- Q: What is the output type?
- A: It features push-pull outputs, providing strong drive without needing pull-up resistors.
- Q: What is the output current?
- A: It can source and sink 32mA.
- Q: What package is it available in?
- A: It comes in SOT-563 or SOT-666 packages.
- Q: What is the temperature range?
- A: It operates from -40°C to 125°C.
