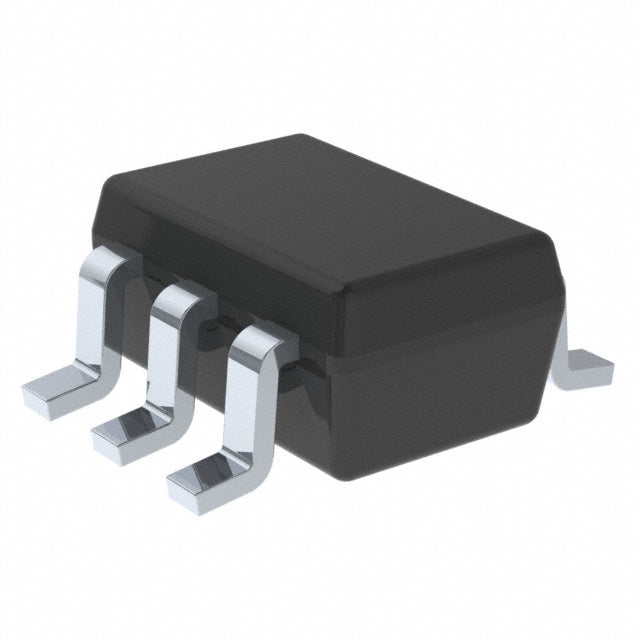

Texas Instruments SN74LVC2G34MDCKREP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.30 | $2.30 |
| 15+ | $2.23 | $33.45 |
| 25+ | $2.18 | $54.50 |
| 50+ | $2.06 | $103.00 |
| 100+ | $1.82 | $182.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Push-Pull |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| ROHS |  |
The SN74LVC2G34MDCKREP is a dual non-inverting buffer from Texas Instruments, part of the 74LVC logic family. It features two channels with push-pull outputs capable of driving 24mA. Operating from 1.65V to 5.5V, it provides reliable signal buffering and fan-out expansion. The extended temperature range (-55°C to 125°C) makes it suitable for automotive and industrial applications. Typical uses include level shifting, clock distribution, and sensor interfacing. Its compact 6-TSSOP package is ideal for space-constrained designs.
- Wide Voltage Range (1.65V-5.5V): Supports multiple logic levels, reducing design complexity.
- Push-Pull Outputs: No external pull-ups needed, saving board space.
- 24mA Drive Capability: Ensures reliable signal transmission to multiple loads.
- Extended Temperature Range (-55°C to 125°C): Suitable for harsh environments.
- Small Package (SOT-363): Ideal for miniaturized electronic devices.
Fan-Out Expansion for Microcontrollers
Increase the drive capability of a microcontroller's GPIO pins. The buffer can drive multiple loads, ensuring signal integrity when connecting to multiple peripherals.
Level Shifting for Low-Voltage Logic
Interface 1.8V or 2.5V logic with 3.3V or 5V systems. The wide voltage range allows direct connection, simplifying mixed-voltage designs.
Clock Distribution
Buffer clock signals to multiple destinations without degradation. The push-pull output provides clean edges, essential for synchronous systems.
Industrial Sensor Interfacing
Buffer signals from industrial sensors that may have weak drive strength. The 24mA output current ensures reliable transmission over longer cables.
Automotive Body Electronics
In automotive body control modules, this buffer can drive indicator LEDs and interface with switches. The extended temperature range ensures reliability in harsh conditions.
Portable Medical Devices
For battery-powered medical monitors, this buffer offers low power consumption and small footprint, ideal for signal conditioning in compact devices.
- Q: What is the logic family of the SN74LVC2G34MDCKREP?
- A: It belongs to the 74LVC logic family, known for low-voltage, high-speed operation.
- Q: What function does this IC perform?
- A: It is a dual non-inverting buffer, providing signal buffering and fan-out expansion.
- Q: How many channels does it have?
- A: It has 2 independent channels, each with a buffer output.
- Q: What is the output type?
- A: The outputs are push-pull, capable of sourcing and sinking current without external components.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 5.5V, making it versatile for various logic levels.
- Q: What package is available?
- A: It comes in a 6-TSSOP, SC-88, SOT-363 package, suitable for compact layouts.
