Texas Instruments SN74LVC827ADGVR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.36 | $1.36 |
| 15+ | $1.32 | $19.80 |
| 25+ | $1.29 | $32.25 |
| 50+ | $1.22 | $61.00 |
| 100+ | $1.07 | $107.00 |
| N+ | $0.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 10 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TVSOP |
| ROHS |  |

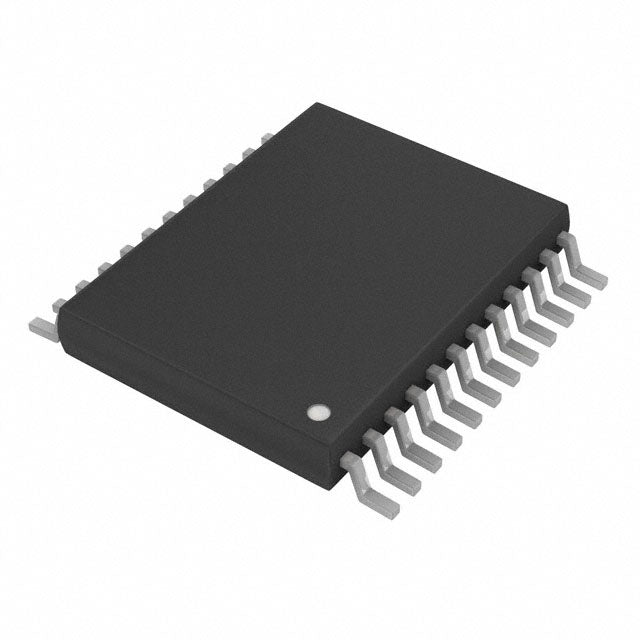

The SN74LVC827ADGVR is a 10-bit non-inverting buffer from Texas Instruments, part of the 74LVC logic family. It operates from 1.65V to 3.6V, with 5V tolerant inputs for mixed-voltage compatibility. The 3-State outputs and 24mA drive current make it suitable for bus buffering and high-fan-out applications. Housed in a compact 24-pin TFSOP package, it is ideal for portable electronics, networking equipment, and FPGA interfacing where low power and small size are critical.
- Low-Voltage Operation (1.65V-3.6V): Compatible with modern low-power processors and FPGAs.
- 5V Tolerant Inputs: Simplifies interfacing with legacy 5V logic without external level shifters.
- High Drive Current (24mA): Ensures reliable signal integrity even with multiple loads.
- 3-State Outputs: Allows bus sharing and power savings by disconnecting unused sections.
Low-Voltage Bus Buffering
Use the SN74LVC827ADGVR to buffer address or data lines in 3.3V or lower voltage systems. Its 1.65V minimum operating voltage supports next-generation low-power processors.
Level Shifting from 3.3V to 5V
With 5V tolerant inputs, this buffer can accept 5V signals while operating from a 3.3V supply, providing a simple level-shifting solution for mixed-voltage systems.
High-Fan-Out Clock Distribution
The 10-bit buffer can distribute a clock signal to multiple loads. The 24mA drive capability ensures fast rise and fall times even with high capacitive loads.
Battery-Powered Portable Devices
In smartphones and tablets, this buffer manages signals at low voltages to conserve power. The 74LVC family's low static power consumption extends battery life.
FPGA/CPLD Interface Buffering
Buffer signals between an FPGA and external peripherals. The 3-State outputs allow the FPGA to release the bus when not in use, preventing contention.
Server and Networking Equipment
In networking gear, this buffer drives control and status lines across a backplane. Its low-voltage operation reduces overall system power consumption.
- Q: What logic family is the SN74LVC827ADGVR?
- A: It belongs to the 74LVC family, which supports low-voltage operation with 5V tolerant inputs.
- Q: What is the function of this IC?
- A: It is a 10-bit buffer with non-inverting outputs, designed for signal buffering and fan-out.
- Q: How many channels does it have?
- A: It has 1 channel with 10 bits, providing 10 buffer circuits.
- Q: What is the output type?
- A: It features 3-State outputs, allowing connection to a shared bus.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V, making it ideal for low-power, low-voltage applications.
- Q: What package is available?
- A: It comes in a 24-pin TFSOP (Thin Shrink Small Outline Package) with a 4.40mm width.
