Texas Instruments SN74LVC827APWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.29 | $1.29 |
| 15+ | $1.25 | $18.75 |
| 25+ | $1.22 | $30.50 |
| 50+ | $1.16 | $58.00 |
| 100+ | $1.02 | $102.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 10 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

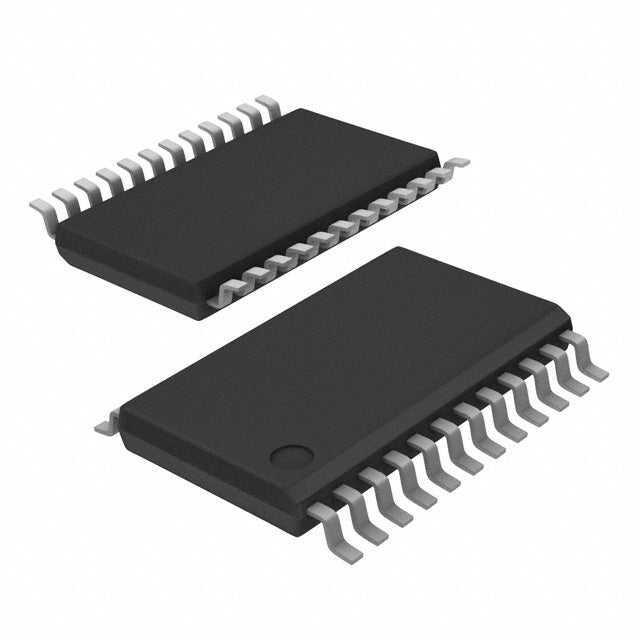

| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| ROHS |  |
The SN74LVC827APWR is a 10-bit non-inverting buffer from Texas Instruments, part of the 74LVC logic family. It operates from 1.65V to 3.6V, with 3-state outputs capable of sourcing or sinking 24mA. The device features 5V tolerant inputs, allowing interfacing with legacy 5V systems. Housed in a 24-pin TSSOP package, it operates from -40°C to 125°C, making it suitable for industrial and automotive applications where robust signal buffering is required.
- 10-Channel Capacity: Buffers wide buses in a single package, reducing component count.
- High 24mA Drive: Ensures signal integrity when driving capacitive loads or multiple inputs.
- 5V Tolerant Inputs: Allows mixing with older 5V logic without external level shifters.
- Wide Temperature Range (-40°C to 125°C): Suitable for harsh environments.
High-Density Bus Buffering
With 10 channels and 24mA drive capability, this buffer can fan out signals to multiple loads, maintaining signal integrity on wide data buses.
Memory Address Line Driving
In DRAM or SRAM systems, the SN74LVC827APWR buffers address lines, reducing capacitive loading on the memory controller and improving timing margins.
Mixed-Voltage System Interfacing
Operating from 1.65V to 3.6V, it interfaces between 1.8V and 3.3V components, with 5V tolerant inputs for added flexibility.
Backplane and Card Edge Connectors
The high drive current and 3-state outputs make it ideal for driving signals across backplanes, where long traces and multiple connectors add capacitance.
FPGA and CPLD Signal Conditioning
Buffering outputs from FPGAs with this device prevents signal degradation when driving multiple peripherals, ensuring clean logic levels.
Industrial Control Panels
With a temperature range of -40°C to 125°C, it reliably buffers control signals in industrial automation equipment.
- Q: What is the logic family of the SN74LVC827APWR?
- A: It belongs to the 74LVC family, which offers low-voltage operation with high-speed performance and 5V tolerant inputs.
- Q: What is the function of this IC?
- A: It is a 10-bit buffer with non-inverting outputs, designed to drive heavily loaded buses or high-capacitance lines.
- Q: How many channels does it have?
- A: It provides 10 buffer channels, each with a 3-state output controlled by an output enable (OE) pin.
- Q: What is the output type?
- A: The outputs are 3-state and non-inverting, allowing connection to shared buses with high-impedance control.
- Q: What voltage range does it support?
- A: It operates from 1.65V to 3.6V, making it compatible with 1.8V, 2.5V, and 3.3V logic systems.
- Q: What package is available?
- A: It comes in a 24-pin TSSOP package (0.173" width), suitable for compact surface-mount designs.
