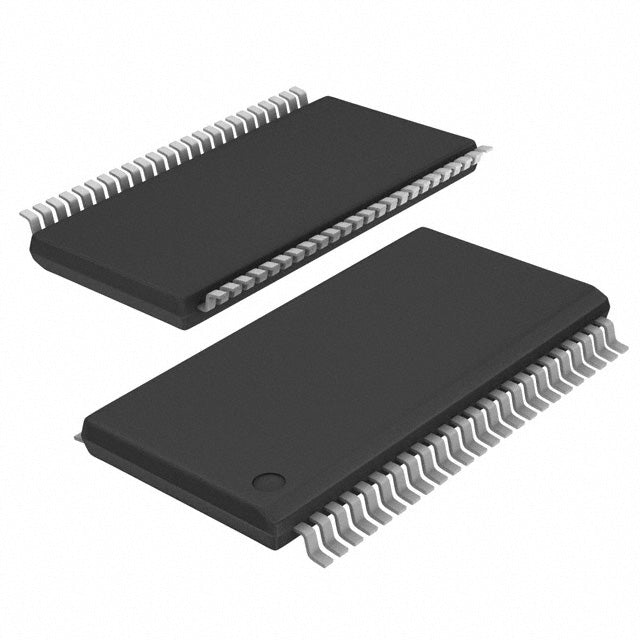

Texas Instruments SN74LVCH16244ADGVR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.19 | $1.19 |
| 15+ | $1.15 | $17.25 |
| 25+ | $1.13 | $28.25 |
| 50+ | $1.06 | $53.00 |
| 100+ | $0.94 | $94.00 |
| N+ | $0.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVCH |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 48-TVSOP |
| ROHS |  |
The SN74LVCH16244ADGVR is a 16-bit non-inverting buffer from Texas Instruments, part of the 74LVCH logic family. It operates from 1.65V to 3.6V, providing 24mA source and sink current. With 3-State outputs and bus-hold functionality, it is ideal for low-voltage bus interfacing. This buffer is suitable for FPGA interfacing, portable electronics, and memory card applications. The 48-TFSOP package is compact for high-density designs.
- Wide Low-Voltage Range (1.65V-3.6V): Compatible with 1.8V, 2.5V, and 3.3V systems.
- Bus-Hold Function: Eliminates the need for external pull-up resistors, saving board space.
- 3-State Outputs: Enables bus sharing and isolation.
- Low Power Consumption: Ideal for battery-powered devices.
Low-Voltage Bus Buffering
Use the SN74LVCH16244ADGVR to buffer 16-bit buses in 3.3V or lower systems. Its 24mA drive capability ensures reliable signal transmission.
Level Shifting (3.3V to 2.5V)
With a wide voltage range, this buffer can interface between 3.3V and 2.5V logic, simplifying mixed-voltage designs.
FPGA/CPLD Interfacing
Connect FPGAs operating at 1.8V or 2.5V to peripherals, using the buffer to drive multiple loads without signal degradation.
Portable Electronics
In battery-powered devices, this low-voltage buffer reduces power consumption while maintaining high-speed performance.
Memory Card Interfaces
Buffer data lines between a low-voltage controller and SD/eMMC cards, ensuring signal integrity.
Industrial Sensors (Low-Power)
Interface low-voltage sensors with a 3.3V MCU, providing robust buffering in industrial environments.
- Q: What logic family does the SN74LVCH16244ADGVR belong to?
- A: It belongs to the 74LVCH family, offering low-voltage CMOS with bus-hold.
- Q: What is the function of this IC?
- A: It is a 16-bit buffer with non-inverting outputs for signal buffering.
- Q: How many channels does it have?
- A: It has 4 channels, each handling 4 bits, totaling 16 bits.
- Q: What is the output type?
- A: It features 3-State outputs for bus-oriented applications.
- Q: What is the voltage range?
- A: It operates from 1.65V to 3.6V, ideal for low-voltage systems.
- Q: What package is available?
- A: It comes in a 48-TFSOP (0.173", 4.40mm Width) package.
