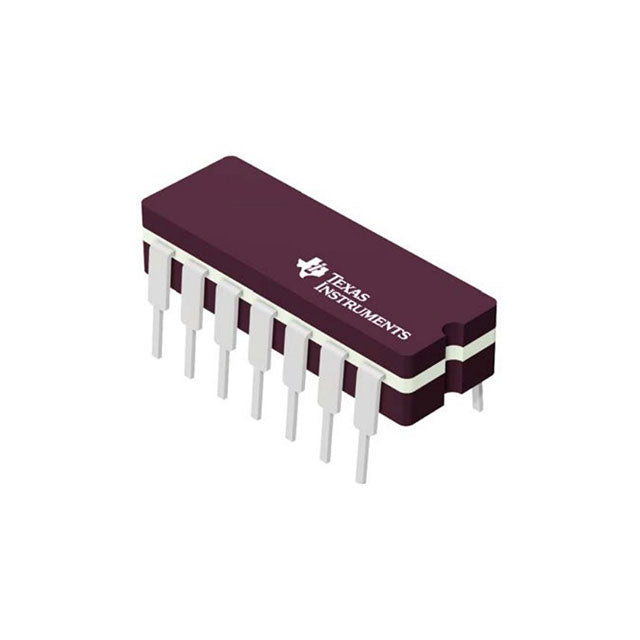

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $1.92
Regular price $2.02 Sale price $1.92
Sale Sold out
Quantity Unit Price Total Price
1 $1.92 $1.92
15+ $1.86 $27.90
25+ $1.82 $45.50
50+ $1.72 $86.00
100+ $1.52 $152.00
N+ $0.30 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Texas Instruments
Product Series 74S
Packaging Bulk | Tube
Part Status Active
Logic Type AND/OR/INVERT Gate
Number of Circuits 2
Number of Inputs 8 Input (2, 2, 2, 2)
Schmitt Trigger Input No
Output Type Single-Ended
Current - Output High, Low 1mA, 20mA
Voltage - Supply 4.75V ~ 5.25V
Operating Temperature 0°C ~ 70°C
Grade -
Qualification -
Mounting Type Through Hole
Package / Case 14-DIP (0.300", 7.62mm)
Supplier Device Package 14-PDIP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
