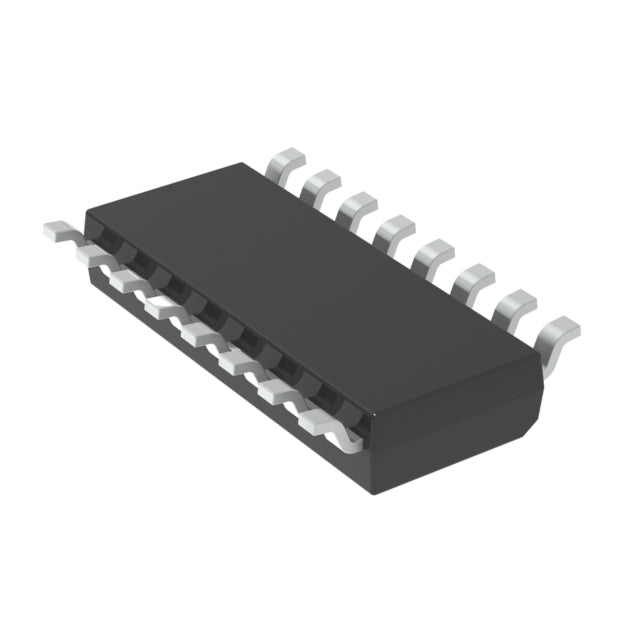

onsemi SNCV5700DR2G
Regular price
$2.41
Regular price
$2.54
Sale price
$2.41
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.41 | $2.41 |
| 15+ | $2.34 | $35.10 |
| 25+ | $2.29 | $57.25 |
| 50+ | $2.16 | $108.00 |
| 100+ | $1.91 | $191.00 |
| N+ | $0.38 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Voltage - Supply | 12.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.75V, 4.3V |
| Current - Peak Output (Source, Sink) | 7.8A, 6.8A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 9.2ns, 7.9ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
SNCV5700DR2G.pdf
×
