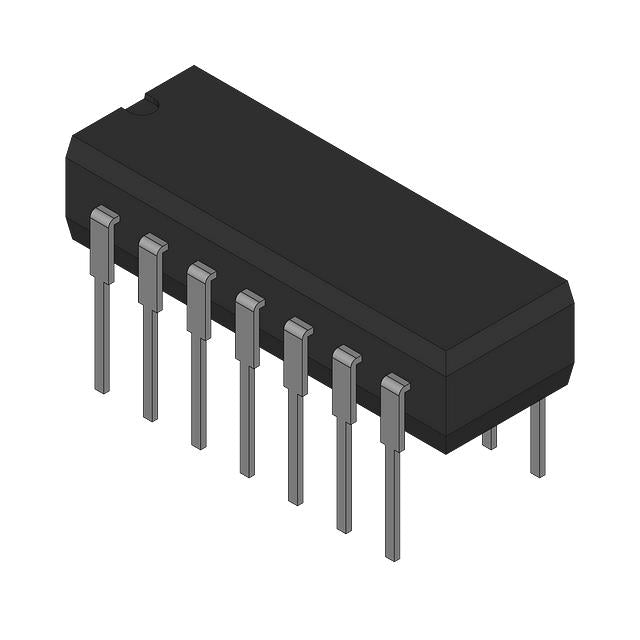

Texas Instruments SNJ54AS00J
Regular price
$47.12
Regular price
$11.78
Sale price
$47.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $47.12 | $47.12 |
| 15+ | $10.84 | $162.60 |
| 25+ | $10.60 | $265.00 |
| 50+ | $10.01 | $500.50 |
| 100+ | $8.84 | $884.00 |
| N+ | $1.77 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 54AS |
| Packaging | Bulk | |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 17.4 mA |
| Current - Output High, Low | 2mA, 20mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP |
| Supplier Device Package | 14-CDIP (0.300", 7.62mm) |
SNJ54AS00J.pdf
×
