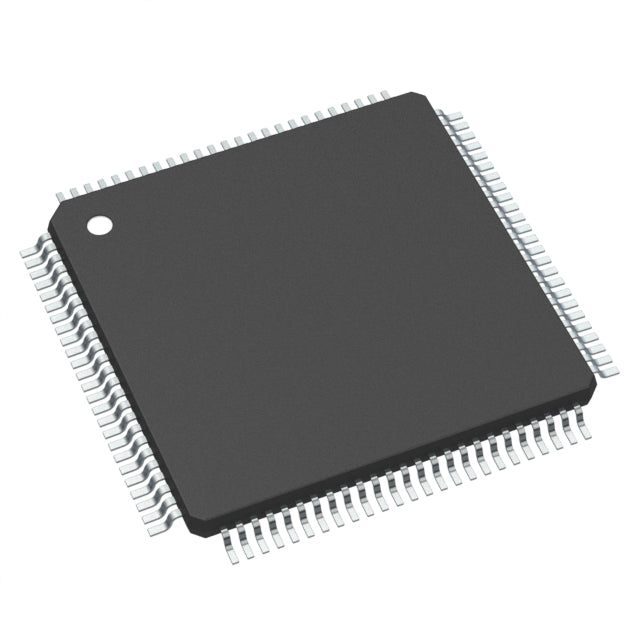

STMicroelectronics SPC560B40L3B4E0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.09 | $18.09 |
| 15+ | $4.16 | $62.40 |
| 25+ | $4.07 | $101.75 |
| 50+ | $3.84 | $192.00 |
| 100+ | $3.39 | $339.00 |
| N+ | $0.68 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 79 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 28x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The STMicroelectronics SPC560B40L3B4E0X is a 32-bit Power Architecture microcontroller with an e200z0h core at 64MHz. It provides 256KB flash and 24KB RAM, operating from 3V to 5.5V. Packaged in a 100-LQFP, it is designed for demanding automotive and industrial control applications.
- 64MHz e200z0h core – high computational throughput for real-time control.
- 256KB flash / 24KB RAM – ample memory for complex firmware.
- Wide 3V-5.5V supply – flexible for various automotive power rails.
- DMA and PWM integration – reduces CPU overhead for motor control.
Engine Control Units (ECU)
The 64MHz e200z0h core and 256KB flash handle complex fuel injection and ignition timing algorithms.
Transmission Control Modules
DMA and PWM peripherals enable precise solenoid control for gear shifting.
Electric Power Steering
High-speed processing and 24KB RAM support real-time torque sensing and motor control.
Body Electronics
With 100-pin LQFP and 5.5V operation, it integrates easily into body control modules.
Hybrid Vehicle Controllers
The 105°C rating and robust peripherals suit it for high-temperature hybrid powertrain environments.
Industrial Drives
Its PWM and WDT features make it reliable for variable-speed motor drives in factories.
- Q: What core architecture does the SPC560B40L3B4E0X use?
- A: It is based on the e200z0h Power Architecture core, running at 64MHz.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V, compatible with standard automotive logic levels.
- Q: How much flash memory is available?
- A: It has 256KB of flash memory and 24KB of RAM.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C, suitable for most automotive applications.
