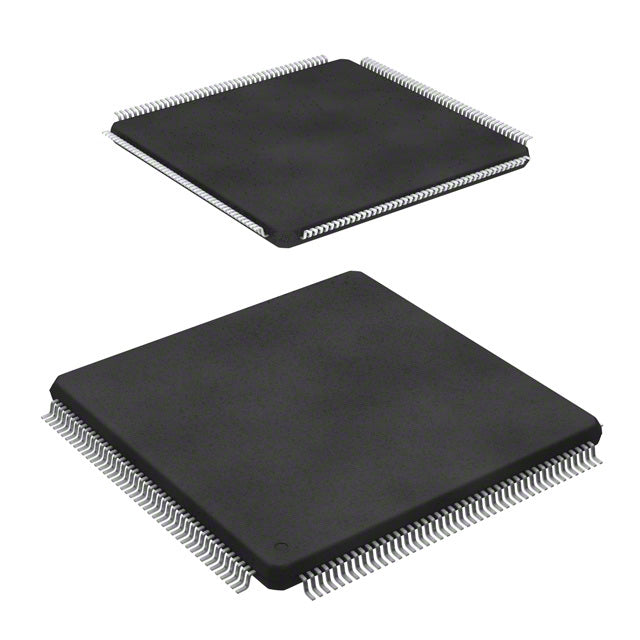

STMicroelectronics SPC560B60L7B6E0X
Regular price
$42.45
Regular price
$10.61
Sale price
$42.45
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $42.45 | $42.45 |
| 15+ | $9.76 | $146.40 |
| 25+ | $9.55 | $238.75 |
| 50+ | $9.02 | $451.00 |
| 100+ | $7.96 | $796.00 |
| N+ | $1.59 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 149 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 53x10/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STMicroelectronics SPC560B60L7B6E0X is a 32-bit MCU based on the e200z0h core, running at 64MHz. It features 1MB flash and 80KB RAM, with DMA, LVD, POR, PWM, and WDT. The 176-LQFP package and 3V-5.5V supply make it ideal for demanding automotive and industrial applications.
- 1MB flash – accommodates large application code and calibration data.
- 64MHz performance – handles real-time control loops with headroom.
- High I/O count (176-LQFP) – reduces need for external expanders.
- Automotive-grade reliability – designed for harsh environments.
Engine Control Units
64MHz processing and 1MB flash handle complex fuel injection algorithms.
Transmission Controllers
DMA and PWM enable precise solenoid control with real-time feedback.
Industrial Automation PLCs
176-LQFP provides abundant I/O for multiple fieldbus interfaces.
Battery Management Systems
LVD and POR ensure safe shutdown and monitoring in high-voltage packs.
Advanced Driver Assistance
80KB RAM supports sensor fusion for camera and radar preprocessing.
Electric Power Steering
High-speed PWM and WDT deliver reliable torque assist control.
- Q: What is the core processor in this MCU?
- A: It uses the e200z0h Power Architecture core running at 64MHz.
- Q: How much flash memory does it have?
- A: It provides 1MB of program flash and 80KB of RAM.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C, suitable for automotive and industrial use.
- Q: What package is available?
- A: It comes in a 176-LQFP package with a 3V to 5.5V supply range.
Base Product Number ：
SPC560B60L7B6E0X
