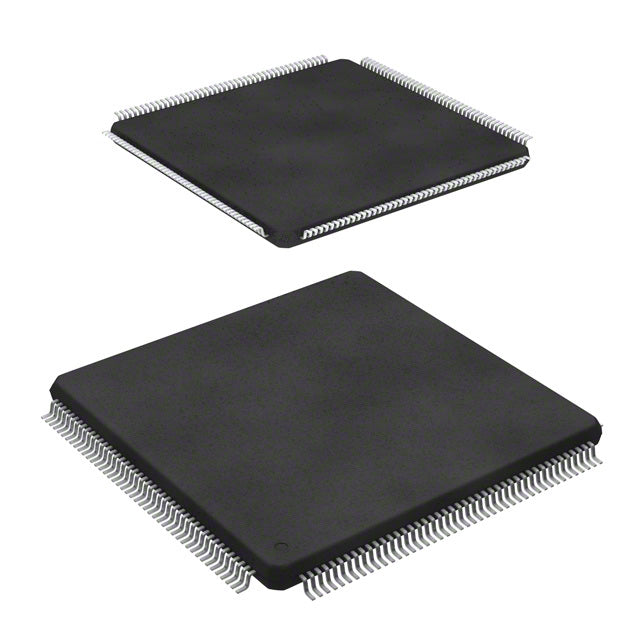

STMicroelectronics SPC560B60L7C6E0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 149 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 53x10/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The SPC560B60L7C6E0X from STMicroelectronics is a 32-bit Power Architecture MCU with e200z0h core running at 64MHz. It features 1MB flash and 80KB RAM, operating from 3V to 5.5V. The 176-LQFP package is designed for automotive and industrial applications requiring high reliability and real-time performance.
- Automotive-grade e200z0h core – optimized for real-time control.
- 1MB flash memory – ample space for complex firmware.
- 5.5V supply tolerance – direct battery connection without extra regulators.
- DMA controller – reduces CPU load for data transfers.
Engine Control Units
64MHz e200z0h core with 1MB flash handles complex fuel injection algorithms in real-time.
Transmission Controllers
Multiple PWM channels and DMA enable precise solenoid control for gear shifting.
Body Control Modules
5.5V supply tolerance simplifies direct connection to automotive battery systems.
Electric Power Steering
High-speed PWM and WDT ensure fail-safe operation in safety-critical steering systems.
Hybrid Vehicle Battery Management
LVD and POR protect against voltage transients in high-vibration environments.
Industrial Automation PLCs
Extended temperature range and 80K RAM support complex ladder logic programs.
- Q: What core does it use?
- A: e200z0h Power Architecture core.
- Q: What is the maximum frequency?
- A: 64MHz.
- Q: How much flash memory is available?
- A: 1MB.
- Q: What is the supply voltage range?
- A: 3V to 5.5V.
- Q: What package is it available in?
- A: 176-LQFP.
