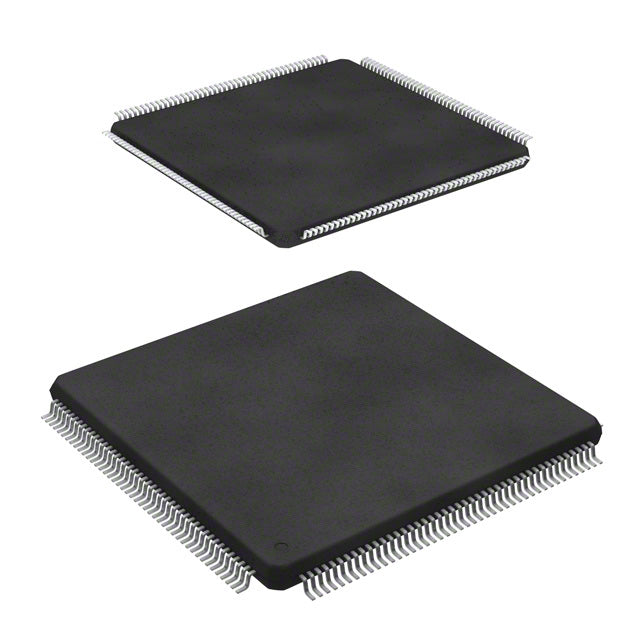

STMicroelectronics SPC560B64L7B6E0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $32.59 | $32.59 |
| 15+ | $7.50 | $112.50 |
| 25+ | $7.34 | $183.50 |
| 50+ | $6.93 | $346.50 |
| 100+ | $6.11 | $611.00 |
| N+ | $1.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 149 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 53x10/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The SPC560B64L7B6E0X is a 32-bit microcontroller from STMicroelectronics, featuring the e200z0h Power Architecture core at 64 MHz. It offers a generous 1.5MB of flash memory and 96KB of RAM, operating from 3V to 5.5V. The device integrates DMA, LVD, POR, PWM, and WDT peripherals, and is housed in a 176-LQFP package. It is designed for complex automotive and industrial systems requiring high memory and I/O count, with an operating temperature range of -40°C to 105°C.
- Large 1.5MB flash: Supports complex firmware and over-the-air updates.
- 96KB RAM: Enables extensive data buffering and multitasking.
- 176-pin LQFP: Provides abundant I/O for peripheral-rich designs.
- 64MHz e200z0h core: Balanced performance for real-time control.
- Wide voltage range (3V-5.5V): Flexible power supply integration.
Automotive Gateway Modules
The large 1.5MB flash and 64MHz core handle multiple CAN and LIN protocol stacks.
Industrial Robotics
High pin count (176) allows interfacing with multiple encoders and safety relays.
Electric Vehicle Battery Management
Wide voltage range and LVD support cell monitoring and balancing algorithms.
Construction Equipment Displays
Ample RAM (96KB) supports graphical dashboards with real-time telemetry.
Power Distribution Units
PWM and DMA enable precise control of multiple power converters.
Railway Signaling Systems
Extended temperature range and robust POR ensure fail-safe operation.
- Q: What core does the SPC560B64L7B6E0X use?
- A: It uses the e200z0h Power Architecture core.
- Q: What is the maximum clock speed?
- A: It runs at 64 MHz.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V.
- Q: How much flash and RAM are included?
- A: It has 1.5MB flash and 96KB RAM.
- Q: What package is it available in?
- A: It comes in a 176-LQFP package.
