STMicroelectronics SPC560D30L1B4E0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.97 | $7.97 |
| 15+ | $5.23 | $78.45 |
| 25+ | $5.12 | $128.00 |
| 50+ | $4.84 | $242.00 |
| 100+ | $4.27 | $427.00 |
| N+ | $0.85 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 45 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |

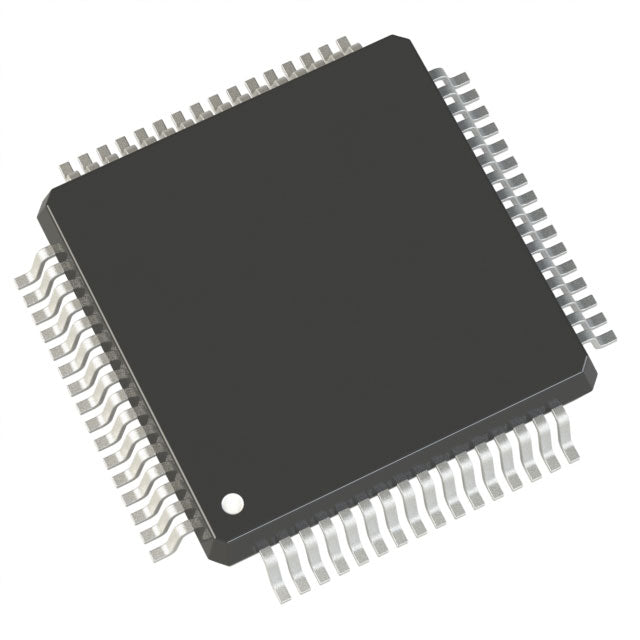

The SPC560D30L1B4E0X from STMicroelectronics is a rugged 32-bit MCU based on the e200z0h core, running at 48 MHz. It offers 128 KB flash and 12 KB SRAM in a 64-LQFP package. Designed for automotive and industrial environments, it operates from 3V to 5.5V and withstands temperatures up to 105°C.
- Automotive-grade reliability: -40°C to 105°C operation and LVD for harsh environments.
- Wide voltage range: 3V to 5.5V simplifies power supply design.
- Proven architecture: e200z0h core with DMA for efficient data handling.
- Compact package: 64-LQFP balances pin count and board space.
Engine Control Units (ECU)
The 5.5V supply and 105°C rating handle under-hood temperatures, while PWM controls fuel injectors.
Body Control Modules
DMA and WDT ensure reliable operation for window lifts, door locks, and lighting control in vehicles.
Transmission Control
48 MHz processing and robust peripherals manage solenoid valves and gear shifting logic.
Industrial Motor Drives
Wide voltage range simplifies direct connection to 24V industrial supplies with minimal regulation.
Agricultural Equipment
High-temperature tolerance and LVD protect against dust, vibration, and thermal stress in tractors.
Marine Electronics
Robust design and 5V logic interface with legacy sensors in navigation and bilge pump controllers.
