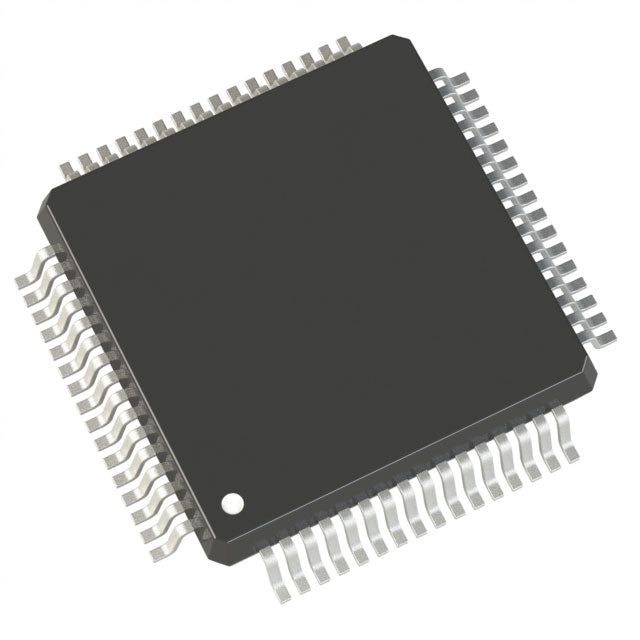

STMicroelectronics SPC560P40L1CEFBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.23 | $9.23 |
| 15+ | $6.06 | $90.90 |
| 25+ | $5.93 | $148.25 |
| 50+ | $5.60 | $280.00 |
| 100+ | $4.94 | $494.00 |
| N+ | $0.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The SPC560P40L1CEFBR from STMicroelectronics is a 32-bit automotive-grade microcontroller based on the Power Architecture e200z0h core. It operates at 64MHz, offering 256KB flash and 20KB RAM. With a supply voltage of 3V to 3.6V and a temperature range of -40°C to +125°C, it is designed for harsh automotive environments. The device includes DMA, PWM, and WDT peripherals, making it ideal for real-time control applications.
- Automotive Qualified: AEC-Q100 Grade 1 ensures reliability in extreme conditions.
- Real-Time Performance: 64MHz core with DMA offloads CPU, enabling deterministic response.
- Robust Communication: Multiple serial interfaces support CAN, LIN, and SPI for vehicle networks.
- Low Power Consumption: Optimized for battery-powered and energy-efficient designs.
- Long-Term Availability: ST commitment to 15-year supply for automotive programs.
Engine Control Units (ECU)
64MHz e200z0h core and robust peripherals handle real-time engine management and fuel injection control.
Transmission Control
PWM and DMA enable precise solenoid control for automatic transmissions.
Body Control Modules
Wide temperature range and multiple communication interfaces support lighting, wiper, and window control.
Electric Power Steering
High-speed processing and PWM outputs provide smooth motor control for EPS systems.
Battery Management Systems
3-3.6V operation and low-power modes suit BMS for hybrid and electric vehicles.
Industrial Automation
Robust design and extended temperature make it suitable for factory floor controllers.
- Q: What is the core architecture?
- A: It uses the e200z0h Power Architecture core, optimized for automotive control.
- Q: What is the maximum clock speed?
- A: The MCU runs at 64MHz, balancing performance and power consumption.
- Q: What is the supply voltage range?
- A: It operates from 3V to 3.6V, typical for automotive electronics.
- Q: How much flash and RAM are available?
- A: It provides 256KB flash and 20KB RAM for application code and data.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to +125°C, meeting AEC-Q100 Grade 1 requirements.
