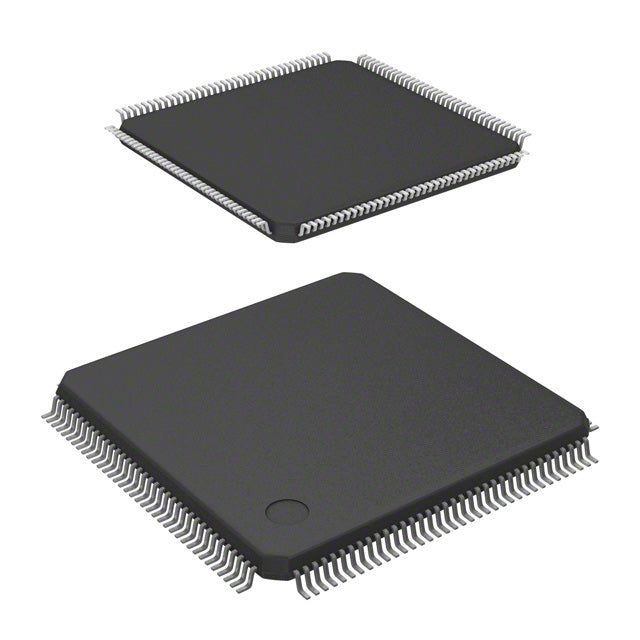

STMicroelectronics SPC560P50L5CEFAR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.36 | $13.36 |
| 15+ | $8.78 | $131.70 |
| 25+ | $8.59 | $214.75 |
| 50+ | $8.11 | $405.50 |
| 100+ | $7.16 | $716.00 |
| N+ | $1.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 107 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 40K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 26x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The SPC560P50L5CEFAR from STMicroelectronics is a 32-bit microcontroller based on the e200z0h core, running at 64MHz. It features 512KB of flash and 40KB of RAM, packaged in a 144-LQFP. Operating from 4.5V to 5.5V and -40°C to 125°C, it includes DMA, POR, PWM, and WDT. This MCU is designed for cost-effective automotive and industrial control applications requiring robust I/O and high-temperature reliability.
- Automotive-Grade Reliability: 125°C operation and 5V supply meet stringent vehicle requirements.
- High Pin Count: 144 pins enable extensive peripheral connectivity without external expanders.
- Cost-Effective Performance: 64MHz core balances performance and cost for mass-produced ECUs.
- Integrated Safety: POR and WDT prevent system lockups in noisy environments.
- Large Flash: 512KB supports complex bootloaders and application code.
Automotive Body Control Modules
The 5V supply and 144 pins allow direct interfacing with relays and switches, while the 64MHz core handles multiple CAN and LIN networks.
Engine Management Systems
With a wide temperature range and robust PWM, it can control fuel injectors and ignition timing in entry-level vehicles.
Industrial Pump Controllers
Its 5V operation simplifies sensor interfaces, and the WDT ensures safe operation in remote monitoring stations.
Agricultural Vehicle Displays
The 512KB flash supports graphical dashboards, and the DMA enables fast data updates from CAN bus.
HVAC Blower Control
PWM outputs and 5V logic drive motor drivers, while the LQFP package allows compact PCB layouts in HVAC units.
Power Distribution Units
High pin count and 5V tolerance make it ideal for managing multiple power channels with fault detection.
- Q: What is the core and speed of the SPC560P50L5CEFAR?
- A: It uses an e200z0h core running at 64MHz, optimized for cost-sensitive automotive applications.
- Q: What is the supply voltage?
- A: It operates from 4.5V to 5.5V, compatible with standard automotive battery systems.
- Q: How much flash and RAM does it have?
- A: It provides 512KB of flash and 40KB of RAM, sufficient for body control and gateway functions.
- Q: What package is available?
- A: It comes in a 144-LQFP package, offering many I/O pins for complex wiring.
- Q: What is the temperature range?
- A: It is rated for -40°C to 125°C, suitable for under-hood applications.
