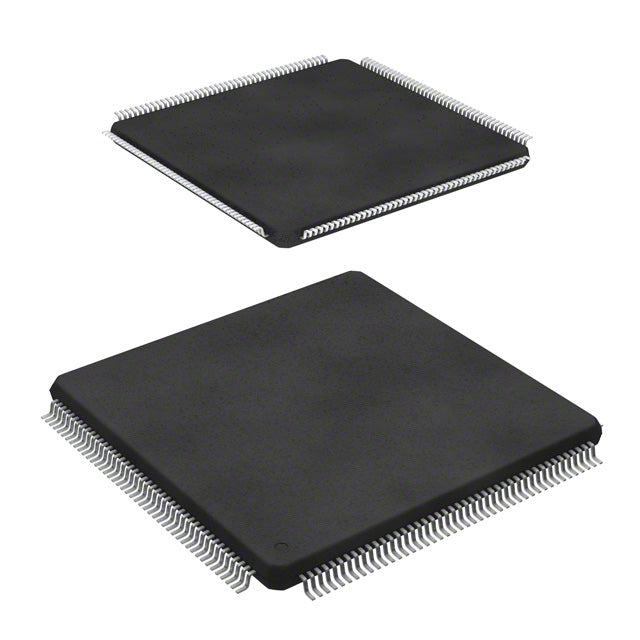

STMicroelectronics SPC564A70L7CFBY
Regular price
$49.77
Regular price
$12.44
Sale price
$49.77
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $49.77 | $49.77 |
| 15+ | $11.44 | $171.60 |
| 25+ | $11.20 | $280.00 |
| 50+ | $10.57 | $528.50 |
| 100+ | $9.33 | $933.00 |
| N+ | $1.87 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tray | NULL |
| Core Processor | e200z4d |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 34x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STMicroelectronics SPC564A70L7CFBY is a 120MHz e200z4d Power Architecture MCU with 2MB flash and 128KB RAM. It operates from 1.14V to 1.32V, featuring DMA, PWM, and watchdog. The 176-LQFP package is optimized for automotive safety systems.
- e200z4d core offers enhanced DSP capabilities for signal processing.
- 2MB flash enables over-the-air update support.
- Wide temperature range for under-hood automotive use.
- DMA and PWM reduce CPU load for real-time control.
- Proven Power Architecture ecosystem with long-term availability.
Advanced Driver Assistance Systems (ADAS)
The e200z4d core with DMA supports sensor fusion for collision detection at 120MHz.
Hybrid Vehicle Controllers
2MB flash and PWM enable coordinated control of electric motors and internal combustion engines.
Railway Signaling
High-temperature tolerance and WDT ensure fail-safe operation in trackside equipment.
Industrial Robotics
Fast deterministic response for multi-axis servo control in manufacturing cells.
Marine Engine Management
Robust design handles saltwater environments with proper conformal coating.
Power Generation
DMA and PWM manage generator excitation and grid synchronization.
- Q: How does SPC564A70L7CFBY differ from SPC564A70L7COBY?
- A: It uses the e200z4d core variant, while COBY uses e200z4. Both run at 120MHz.
- Q: What is the supply voltage?
- A: It operates from 1.14V to 1.32V.
- Q: What is the package type?
- A: It comes in a 176-LQFP package.
- Q: Is it suitable for automotive?
- A: Yes, with -40°C to 125°C operating temperature.
Base Product Number ：
SPC564A70L7
SPC564A70L7CFBY.pdf
