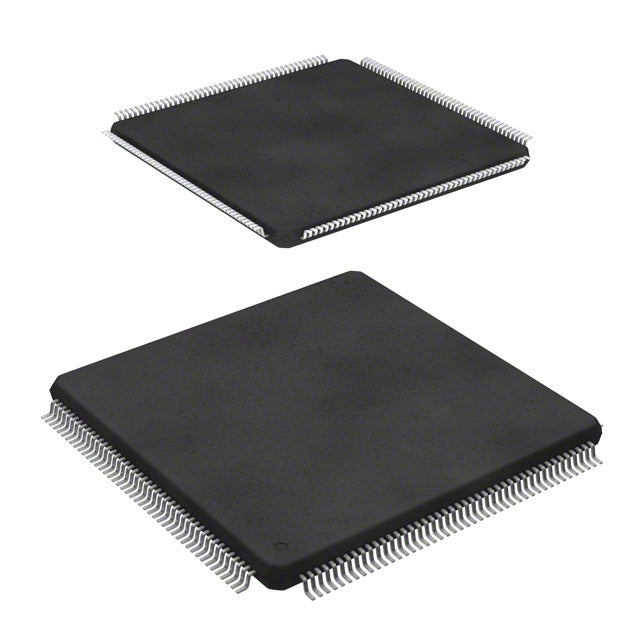

STMicroelectronics SPC564A70L7COBY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $49.77 | $49.77 |
| 15+ | $11.44 | $171.60 |
| 25+ | $11.20 | $280.00 |
| 50+ | $10.57 | $528.50 |
| 100+ | $9.33 | $933.00 |
| N+ | $1.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tray | NULL |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 34x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STMicroelectronics SPC564A70L7COBY is a 120MHz e200z4 Power Architecture MCU with 2MB flash and 128KB RAM. It operates from 1.14V to 1.32V, featuring DMA, PWM, and watchdog. The 176-LQFP package is designed for demanding automotive and industrial applications.
- Automotive-grade temperature range (-40°C to 125°C) ensures reliability in engine bays.
- 2MB flash supports complex AUTOSAR software stacks.
- e200z4 core provides high-performance real-time control.
- DMA reduces CPU overhead for peripheral data transfers.
- PWM channels enable precise motor and actuator control.
Engine Control Units (ECU)
The 120MHz e200z4 core with 2MB flash handles complex fuel injection algorithms in automotive powertrains.
Transmission Control
DMA and PWM enable precise solenoid actuation for automatic gearbox shifting.
Electric Power Steering
Fast interrupt handling and 128KB RAM support real-time torque sensing and motor control.
Body Control Modules
With -40°C to 125°C rating, it manages lighting, wipers, and door locks in extreme climates.
Industrial Automation
Robust WDT and POR ensure fail-safe operation in PLC and motor drive systems.
Off-Highway Vehicles
High-temperature tolerance makes it ideal for construction equipment control systems.
- Q: What is the core processor of SPC564A70L7COBY?
- A: It uses the e200z4 Power Architecture core.
- Q: What is the maximum clock speed?
- A: It runs at 120MHz.
- Q: What is the flash memory size?
- A: It has 2MB of program flash.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C, suitable for automotive.
