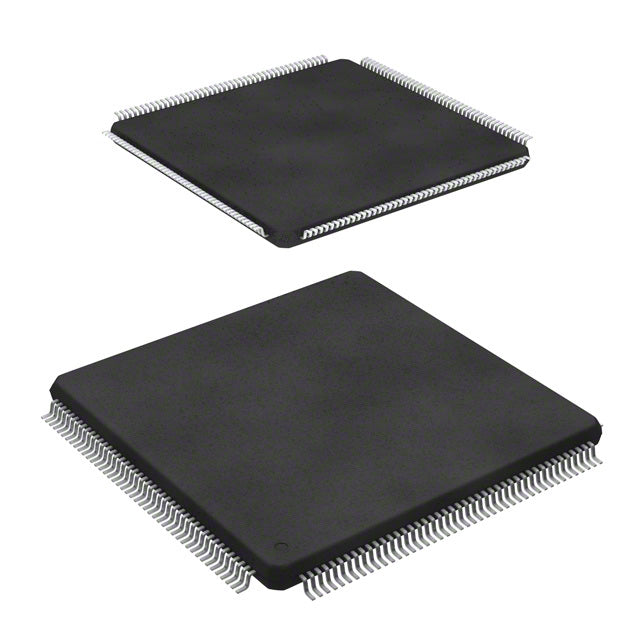

STMicroelectronics SPC564A70L7COCR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 34x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The SPC564A70L7COCR is a 32-bit automotive MCU from STMicroelectronics, built on the e200z4 Power Architecture core at 80MHz. It provides 2MB flash and 128KB RAM, operating from 1.14V to 1.32V. With DMA, POR, PWM, and WDT, it is packaged in a 176-LQFP and rated for -40°C to 125°C. This device balances performance and cost for mid-range automotive and industrial applications.
- 2MB flash with 80MHz core: Large memory capacity at a moderate clock speed for cost-sensitive designs.
- 128KB RAM: Sufficient for complex data handling and multitasking.
- 176-LQFP package: Easier PCB routing compared to BGA, reducing manufacturing complexity.
- Automotive-grade reliability: Designed for long-term operation in harsh conditions.
Gateway Modules
The 80MHz e200z4 core with 2MB flash handles protocol conversion between CAN, LIN, and FlexRay networks.
Body Control Modules (BCM)
128KB RAM and PWM support complex lighting, wiper, and power window control with diagnostic capabilities.
Battery Management Systems (BMS)
DMA and POR ensure reliable cell monitoring and balancing in automotive battery packs.
Industrial Motor Drives
The 176-LQFP package and 80MHz speed provide cost-effective control for AC induction and BLDC motors.
HVAC Blower Controllers
PWM outputs and WDT ensure safe, efficient fan speed control in automotive HVAC systems.
Marine Engine Controls
Wide temperature range and robust peripherals make it suitable for harsh marine environments.
- Q: What is the core speed of the SPC564A70L7COCR?
- A: It runs at 80MHz.
- Q: How much flash memory does it have?
- A: It has 2MB of flash memory.
- Q: What package is used?
- A: It comes in a 176-LQFP package.
- Q: What is the RAM capacity?
- A: It has 128KB of RAM.
