STMicroelectronics SPC564A74B4CFAR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 190 |
| Program Memory Size | 3MB (3M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 40x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

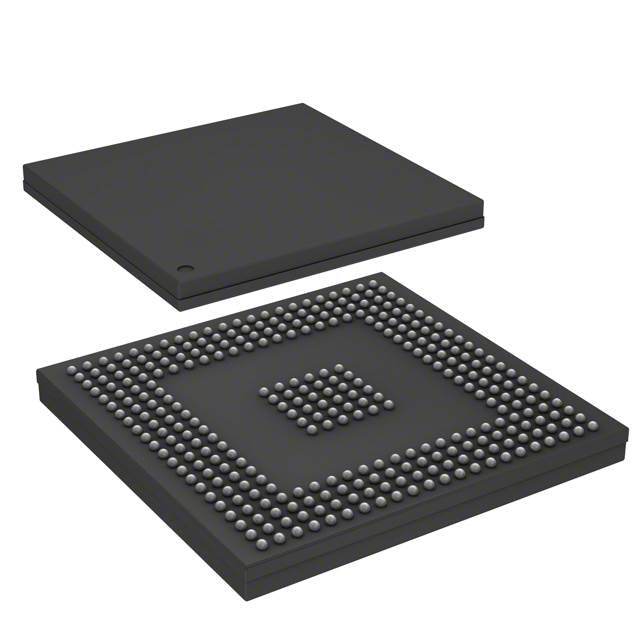

| Supplier Device Package | 324-PBGA (23x23) |
| Package / Case | 324-BGA |
| ROHS |  |
The SPC564A74B4CFAR from STMicroelectronics is a high-performance automotive MCU built on the e200z4 core at 120MHz. It offers 3MB flash and 160K RAM, ideal for demanding control applications. With a 1.14V to 1.32V supply and a 324-BGA package, it operates reliably from -40°C to 125°C. Integrated DMA, POR, PWM, and WDT peripherals reduce external component count and enhance system safety.
- High-Speed Processing: 120MHz e200z4 core delivers fast execution for real-time control loops.
- Large Memory Footprint: 3MB flash and 160K RAM support complex firmware and data buffering.
- Automotive-Grade Reliability: -40°C to 125°C operation and WDT ensure robust performance in harsh environments.
- Efficient Peripheral Set: DMA and PWM reduce CPU load, enabling simultaneous multi-channel control.
Automotive Engine Control Units (ECUs)
The 120MHz e200z4 core and 3MB flash enable complex real-time algorithms for fuel injection and ignition timing, meeting stringent automotive temperature requirements.
Industrial Robotics and Motion Control
With PWM and DMA, this MCU can drive multi-axis servo motors with precise timing, while the WDT ensures system reliability in continuous operation.
Advanced Driver Assistance Systems (ADAS)
The high-speed processing and 160K RAM support sensor fusion algorithms for features like lane departure warning and adaptive cruise control.
Power Train and Transmission Control
Robust CAN and LIN interfaces (via DMA) handle real-time data exchange in harsh under-hood environments, supported by the -40°C to 125°C range.
Aerospace Actuation Systems
The 324-BGA package and wide temperature range make it suitable for flight control actuators requiring deterministic response and high reliability.
Medical Ventilator Control
Precise PWM outputs and fast interrupt handling allow accurate pressure/flow regulation, while POR and WDT ensure fail-safe operation.
- Q: What is the core processor of the SPC564A74B4CFAR?
- A: It uses the e200z4 core, running at 120MHz.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
- Q: What is the program memory size?
- A: It has 3MB (3M x 8) of program memory.
- Q: What package is this MCU available in?
- A: It comes in a 324-BGA package.
