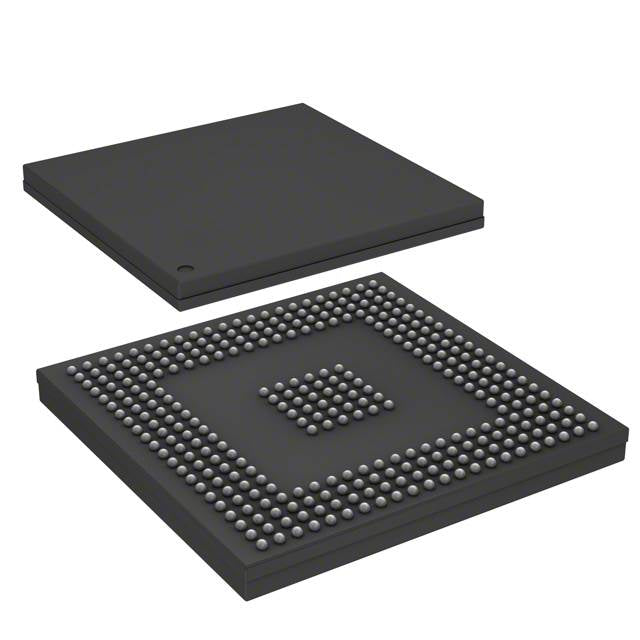

STMicroelectronics SPC564A80B4CFAR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $45.42 | $45.42 |
| 15+ | $29.84 | $447.60 |
| 25+ | $29.20 | $730.00 |
| 50+ | $27.57 | $1,378.50 |
| 100+ | $24.33 | $2,433.00 |
| N+ | $4.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 150MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 190 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 40x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 324-PBGA (23x23) |
| Package / Case | 324-BGA |
| ROHS |  |
The STMicroelectronics SPC564A80B4CFAR is a high-performance MCU featuring an e200z4 core at 150MHz. It offers 4MB flash and 192K RAM. Operating from 1.14V to 1.32V, it includes DMA, POR, PWM, and WDT. Housed in a 324-BGA package, it supports -40°C to 125°C for automotive and industrial applications.
- 150MHz e200z4 core: Delivers high computational throughput for demanding control applications.
- 4MB flash memory: Ample storage for complex firmware and calibration data.
- Low voltage operation (1.14V-1.32V): Reduces power consumption for energy-efficient designs.
- Comprehensive peripherals (DMA, PWM, WDT): Enhances system integration and reliability.
Automotive Powertrain Control
The 150MHz e200z4 core with 4MB flash handles complex engine management algorithms, including fuel injection and emission control.
Industrial Motor Control
PWM and DMA features enable precise field-oriented control of AC motors, improving efficiency in pumps and fans.
Aerospace Flight Control Computers
The wide temperature range (-40°C to 125°C) and POR protection make it suitable for redundant flight control systems.
High-End Robotics
192K RAM supports complex kinematics calculations, while WDT ensures system recovery from software faults.
Railway Signaling Systems
The 324-BGA package and robust design meet railway safety standards for interlocking and signaling controllers.
Medical Imaging Equipment
DMA accelerates data transfer from imaging sensors, while the e200z4 core processes image enhancement algorithms in real-time.
- Q: What core does the SPC564A80B4CFAR use?
- A: It uses the e200z4 core at 150MHz.
- Q: How much flash memory is available?
- A: It has 4MB of program memory.
- Q: What is the supply voltage?
- A: It operates at 1.14V to 1.32V.
- Q: What package is offered?
- A: It comes in a 324-BGA package.
