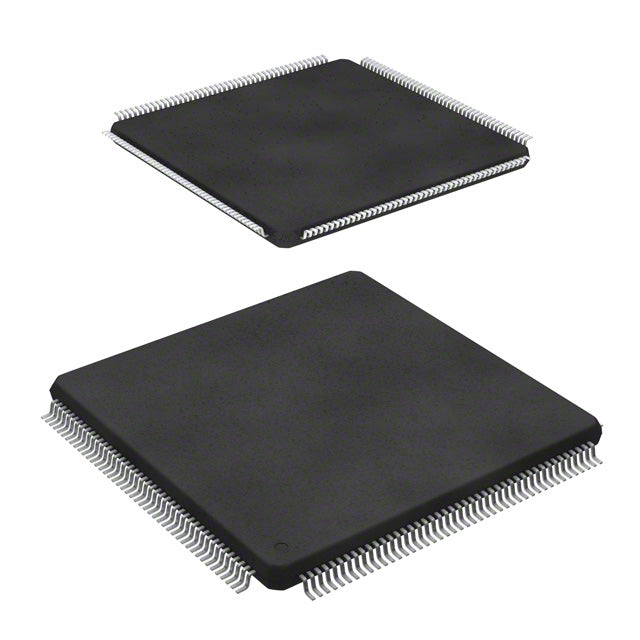

STMicroelectronics SPC564A80L7CFBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $81.05 | $81.05 |
| 15+ | $18.64 | $279.60 |
| 25+ | $18.23 | $455.75 |
| 50+ | $17.22 | $861.00 |
| 100+ | $15.20 | $1,520.00 |
| N+ | $3.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 118 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 34x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STMicroelectronics SPC564A80L7CFBR is a powerful 32-bit MCU featuring the e200z4 core at 120MHz. It offers 4MB flash and 192KB RAM, with DMA, POR, PWM, and WDT peripherals. Operating from 1.14V to 1.32V in a 176-LQFP package, it handles -40°C to 125°C, making it ideal for automotive and industrial control systems.
- Large 4MB flash: Supports extensive application code and over-the-air updates.
- High-temperature operation (125°C): Suitable for under-hood automotive environments.
- e200z4 core with 120MHz: Balances performance and power efficiency for real-time control.
- Compact 176-LQFP: Facilitates PCB layout in space-constrained designs.
Automotive Transmission Control
The 4MB flash and 120MHz e200z4 core handle complex gear-shift algorithms with high reliability.
Industrial Servo Drives
PWM and DMA enable precise current regulation for high-performance servo motors in CNC machines.
Railway Signaling Systems
Wide temperature range and WDT ensure fail-safe operation in trackside control units.
Power Inverters for Solar
The MCU manages MPPT algorithms and grid synchronization with its fast processing and PWM outputs.
Avionics Actuator Control
With 125°C rating and robust design, it suits flight control surface actuators.
Construction Equipment Telematics
DMA and POR support reliable data logging and remote monitoring in heavy machinery.
- Q: What core processor does the SPC564A80L7CFBR use?
- A: It uses the e200z4 core from STMicroelectronics at 120MHz.
- Q: What is the flash memory size?
- A: It has 4MB of program memory.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
- Q: What package is available?
- A: It comes in a 176-LQFP package.
