STMicroelectronics SPC564A80L7CFBY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $81.60 | $81.60 |
| 15+ | $18.77 | $281.55 |
| 25+ | $18.36 | $459.00 |
| 50+ | $17.34 | $867.00 |
| 100+ | $15.30 | $1,530.00 |
| N+ | $3.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tray | NULL |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 118 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 34x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |

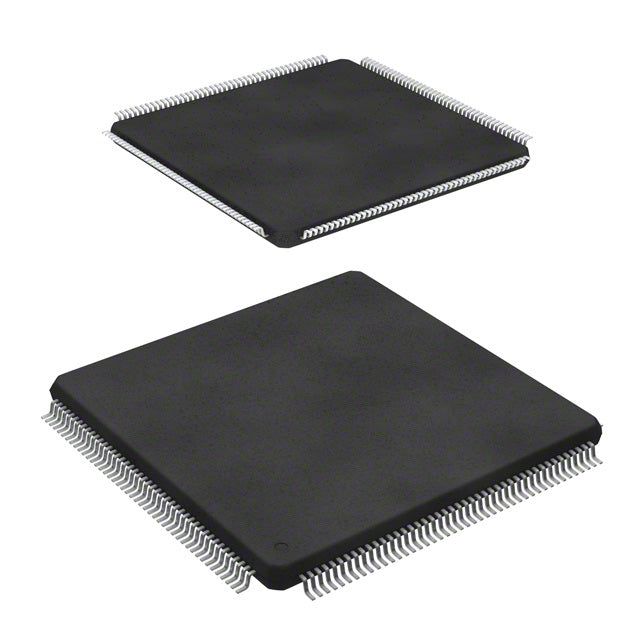

The STMicroelectronics SPC564A80L7CFBY is a 32-bit MCU featuring the e200z4 core at 120MHz. It provides 4MB flash and 192KB RAM in a 176-LQFP package. Operating at 1.14V to 1.32V and -40°C to 125°C, it includes DMA, POR, PWM, and WDT for demanding automotive and industrial applications.
- Massive memory: 4MB flash enables extensive application and data storage.
- Low core voltage: 1.14V-1.32V reduces power consumption and heat generation.
- High pin count: 176-LQFP supports complex I/O configurations.
- Reliable operation: Extended temperature range and integrated safety peripherals.
