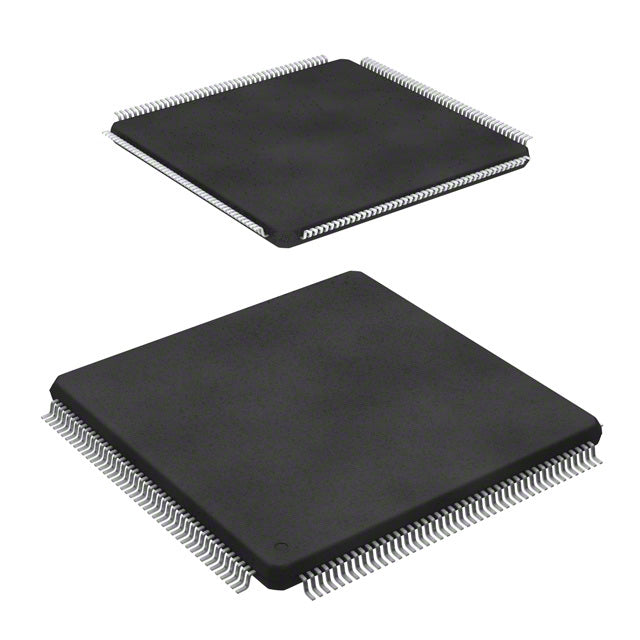

STMicroelectronics SPC564A80L7CFCR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 118 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 34x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The SPC564A80L7CFCR is a high-performance 32-bit MCU from STMicroelectronics, powered by the e200z4 core at 80MHz. It features 4MB flash and 192KB RAM, operating at 1.14V to 1.32V. The 176-LQFP package includes DMA, POR, PWM, and WDT, targeting advanced automotive and industrial applications.
- Massive 4MB flash: Enables complex, feature-rich applications without external storage.
- High-speed e200z4 core: 80MHz performance for real-time control and signal processing.
- Large 192KB RAM: Supports complex data structures and multitasking.
- Automotive-grade reliability: -40°C to 125°C operation for demanding environments.
Advanced Driver Assistance Systems (ADAS)
4MB flash and 80MHz processing enable complex sensor fusion algorithms for camera and radar-based ADAS.
Engine Management Systems
High memory and DMA support real-time control of fuel injection, ignition, and variable valve timing.
Electric Vehicle Battery Management
192KB RAM allows for sophisticated state-of-charge estimation and cell balancing algorithms.
Industrial Robotics
e200z4 core at 80MHz provides the computational power for multi-axis motion control.
Aerospace Actuation Control
Wide temperature range and robust peripherals suit fly-by-wire actuation systems.
High-End Telematics
Large flash memory supports over-the-air updates and complex communication protocols.
- Q: What is the core speed?
- A: 80MHz with e200z4 core.
- Q: What is the supply voltage?
- A: 1.14V to 1.32V.
- Q: How much flash memory?
- A: 4MB.
- Q: What is the RAM size?
- A: 192KB.
- Q: What package is used?
- A: 176-LQFP.
SPC564A80L7CFCR.pdf
- Q: What is the core speed?
- A: 80MHz with e200z4 core.
- Q: What is the supply voltage?
- A: 1.14V to 1.32V.
- Q: How much flash memory?
- A: 4MB.
- Q: What is the RAM size?
- A: 192KB.
- Q: What package is used?
- A: 176-LQFP.
