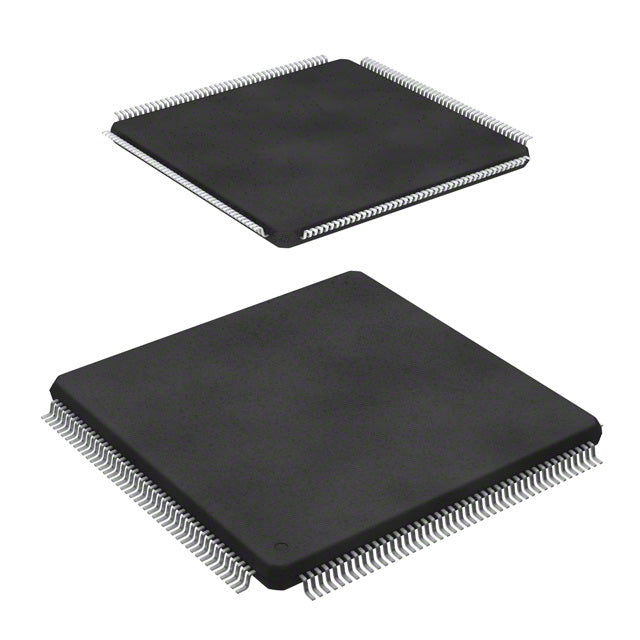

STMicroelectronics SPC564A80L7COBY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $70.51 | $70.51 |
| 15+ | $16.22 | $243.30 |
| 25+ | $15.87 | $396.75 |
| 50+ | $14.99 | $749.50 |
| 100+ | $13.22 | $1,322.00 |
| N+ | $2.64 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tray | NULL |
| Core Processor | e200z4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, LINbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 118 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 1.32V |
| Data Converters | A/D 34x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STMicroelectronics SPC564A80L7COBY is a 32-bit MCU featuring the e200z4 core at 120MHz. It offers a substantial 4MB of flash memory and 192KB of RAM, making it one of the higher-capacity options in its class. Designed for demanding applications, it operates at a core voltage of 1.14V to 1.32V and is housed in a 176-LQFP package. With an operating temperature range of -40°C to 125°C, it is built for harsh environments.
- Massive Memory Capacity: 4MB of flash enables the implementation of complex, feature-rich applications without external storage.
- High-Performance Core: The 120MHz e200z4 provides the computational power for advanced control algorithms and real-time processing.
- Extended Temperature Range: Rated for -40°C to 125°C, it is suitable for the most demanding automotive and industrial applications.
- Large Package for I/O: The 176-LQFP package offers numerous I/O pins for interfacing with a wide array of peripherals and sensors.
High-End Powertrain Control
The 4MB flash and 120MHz e200z4 core enable complex engine management strategies, including multi-fuel injection and variable valve timing, with ample headroom for future updates.
Electric Power Steering (EPS)
The high-speed processing and integrated PWM modules allow for precise motor control and torque sensing, ensuring smooth and responsive steering assistance.
Industrial Servo Drives
With a 176-pin package and extensive I/O, this MCU can interface with multiple encoders and power stages, delivering the real-time performance needed for high-precision motion control.
Aviation Actuators
The wide temperature range and robust safety features (POR, WDT) make it suitable for flight control actuators that require deterministic behavior in extreme conditions.
Grid-Tied Inverters
The 4MB memory supports complex MPPT algorithms and communication protocols, while the 120MHz core handles high-frequency PWM generation for efficient power conversion.
Off-Highway Vehicle Controllers
Its rugged design and large memory make it ideal for managing hydraulic systems and traction control in construction and agricultural machinery.
- Q: What is the core processor of the SPC564A80L7COBY?
- A: It uses the e200z4 core running at 120MHz.
- Q: How much flash memory does it have?
- A: It has 4MB of program memory.
- Q: What is the supply voltage range?
- A: The supply voltage is 1.14V to 1.32V.
- Q: What package is available?
- A: It comes in a 176-LQFP package.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C (TA).
